37FD3720-F
| Manufacturer | |
| Description | Film Capacitors 20uF 370V 10% Cap Film 20uF 370VAC PP 10% (73.82 X 48.42 X 66.8mm) Bracket Mount Metal Can 70°C CAP FILM 20UF 370VAC QC TERM Capacitor; Motor Run;20uF;Flat Oval;370VAC;+/-10% Cap Film 20uF 370VAC PP 10% (73.82 X 48.42 X 66.8mm) Bracket Mount Metal Can 70C CAPACITOR PP FILM 20UF, 370V, 10%, QC Capacitor;MotorRun;20uF;FlatOval;370VAC;10% |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Motor Start/Run Polyester Film Capacitors | Product Category | Film Capacitors |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | Rad Hardened | No |
Electrical
| Voltage | 370VAC | Tolerance | 10 % |
| Capacitance | 20 uF | Range deg/s | :CORNELL DUBILIER - MPF Series |
| Voltage Rating | 370 VAC | Dissipation Factor (DF) | 0.1 |
Mechanical
| Depth | 48.42 mm | Width | 1.906 in |
| Height | 66.8 mm | Weight | 0.209 |
| Diameter | Not Required mm | Packaging | Bulk |
| Termination | Quick Connect, Disconnect | Construction | Metal Can |
| Height (Max) | Not Required mm | Lead Spacing | 0.81 in |
| Mounting Type | Bracket Mount | Mounting Style | Bracket |

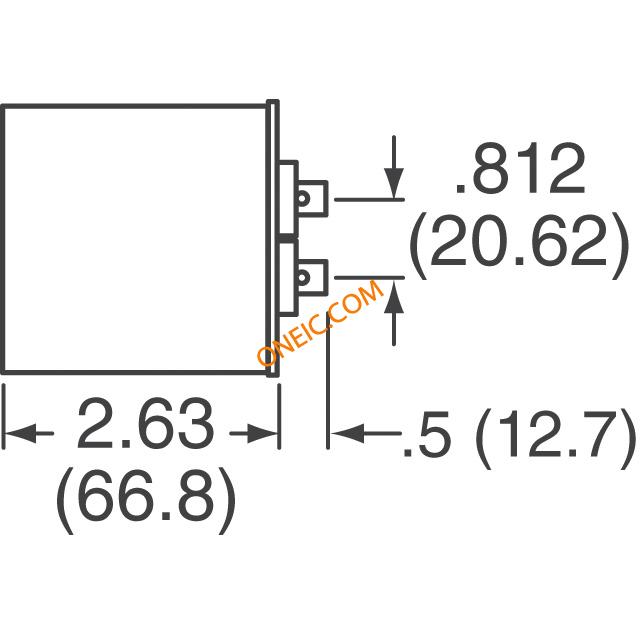

| Package / Case | 2.63 in | Length - Overall | 73.82 mm |

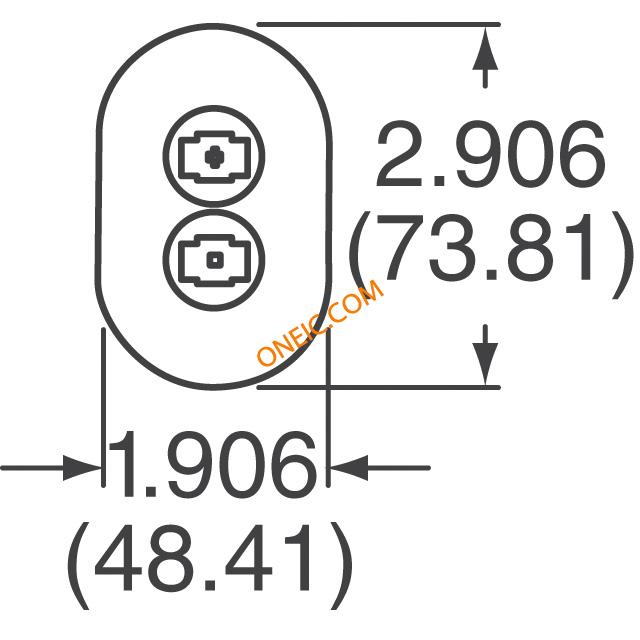

| Material - Blade | PolypropyleneMetallized | Size / Dimension | 2.906" L x 1.906" W (73.81mm x 48.41mm), Lip |
| Termination Style | Screw | Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 2.880" (73.15mm) | Diameter - Small Outside | Not Required mm |
Product Info
| Type | AC Motor Run Capacitor | Series | MPF |
| Applications | Motor Run | Failure Rate | Not Required |
| Product Type | AC Motor | ||
Environmental
| Rated Life | :- | Operating Temperature | - 40 C to + 70 C |
| Temperature Coefficient | PP | ||
