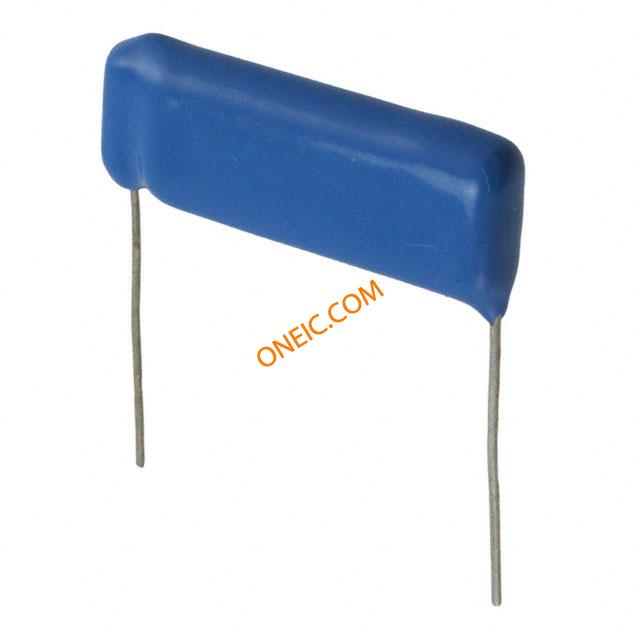

105M02QB47
| Manufacturer | |
| Description | Film Capacitors 1uF 125V 47 Ohm Quencharc Cap RC Network 1uF 200V 20% 47 Ohm 10% 1R/1C 85°C SUPP RC NETWORK 1.0UF 47OHM Capacitor; Metallized Polyester;1uF;Radial;200VDC;+/-20%;1.450In.L;0.390In.T;+8 Cap RC Network 1uF 200V 20% 47 Ohm 10% 1R/1C 85C CAPACITOR POLY FILM FILM 1UF, 20%, 200V, Capacitor;MetallizedPolyester;1uF;Radial;200VDC;20%;1.450In.L;0.390In.T |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Snubber Film Capacitors | Lead Time | 70 Days |
| Other Names | 338-2578 | Subcategory | Capacitor RC Network |
| Product Category | Film Capacitors | Standard Package | 200 |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85322300 | Rad Hardened | No |
| ESD Protection | No | ||
Electrical
| Voltage | 200VDC|125VAC | Tolerance | 20 % |
| Resistance | 47 ohm | Capacitance | 1 uF |
| Range deg/s | :CORNELL DUBILIER - Quencharc Q Series | Filter Order | 1st |
| Voltage Rating | 200 V | Number of Channels | 1 |
| Number of Elements | 1R/1C | Capacitance - Input | :- |
| Number of Capacitors | 1R/1C | Resistance Tolerance | 10% |
| Resistance - Channel (Ohms) | 47 | ESR (Equivalent Series Resistance) | 47 Ohms |
Mechanical
| Depth | 9.9 mm | Width | 9.9 mm |
| Height | 0.911" (23.15mm) | Weight | 0.004 |
| Packaging | Bulk | Construction | Radial |
| Lead Spacing | 30.5 mm | Pitch - Post | 20.8 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 16.8 mm | Length - Overall | 36.8(Max) mm |
| Size / Dimension | 1.449" L x 0.390" W (36.80mm x 9.90mm) | Termination Style | Radial |
| Number of Contacts | 2 | Dielectric Material | Polyester |
Product Info
| Type | Arc Suppressor, Snubber Networks Metallized Polyester Film Capacitor | Series | Q-QRL |
| Values | R = 47 Ohms, C = 1.0µF | Technology | RC |
| Applications | General Purpose | Product Type | Snubber |
Environmental
| Operating Temperature | - 55 C to + 85 C | Temperature Coefficient | PET |
