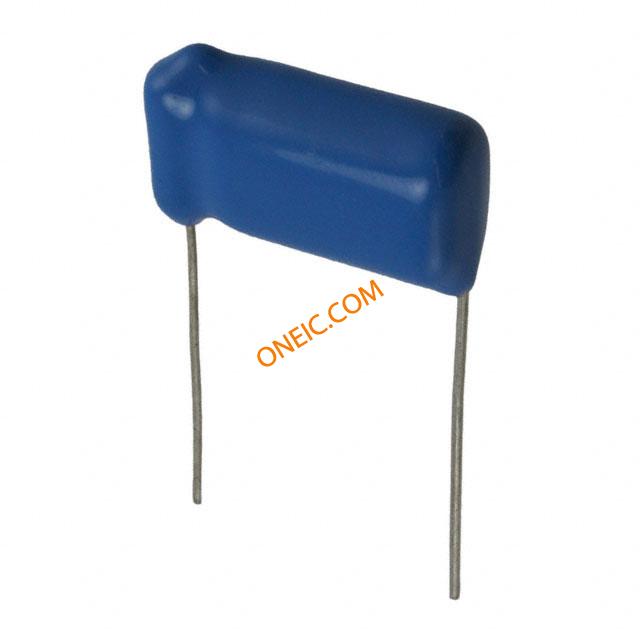

104MACQRL150
| Manufacturer | |
| Description | Film Capacitors .1uF 125V 150 Ohm Quencharc Cap RC Network 0.1uF 1600V 20% 150 Ohm 10% 1R/1C 85°C SUPP RC NETWORK .10UF 150OHM Capacitor; Metallized Polyester;0.1uF;Radial;125VAC;+/-20%;1.080In.L;0.440In.T; CAPACITOR POLY FILM 0.1UF, 125V, 20%, RADIAL Capacitor;MetallizedPolyester;0.1uF;Radial;125VAC;20%;1.080In.L;0.440In.T |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Snubber Film Capacitors | Lead Time | 132 Days |
| Other Names | 338-2583 | Subcategory | Capacitor RC Network |
| Product Category | Film Capacitors | Standard Package | 200 |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85322300 | ESD Protection | No |
Electrical
| Voltage | 1600VDC|660VAC | Tolerance | 20 % |
| Resistance | 150 | Capacitance | 0.1 uF |
| Range deg/s | :CORNELL DUBILIER - Quencharc QRL Series | Filter Order | 1st |
| Voltage Rating | 125 VAC | Number of Channels | 1 |
| Number of Elements | 1R/1C | Resistance Tolerance | 10% |
| Resistance - Channel (Ohms) | 150 | ESR (Equivalent Series Resistance) | 150 Ohms |
Mechanical
| Depth | 11.18(Max) | Width | 11.2 mm |
| Height | 0.911" (23.15mm) | Weight | 0.003 |
| Packaging | Bulk | Lead Spacing | 20.8 mm |
| Pitch - Post | 20.8 | Mounting Type | Through Hole |
| Package / Case | 16.8 mm | Length - Overall | 27.4(Max) |
| Size / Dimension | 1.079" L x 0.441" W (27.40mm x 11.20mm) | Termination Style | Radial |
| Number of Contacts | 2 | Dielectric Material | Polyester |
Product Info
| Type | Arc Suppressor, Snubber Networks Metallized Polyester Film Capacitor | Series | Q-QRL |
| Values | R = 150 Ohms, C = 0.1µF | Technology | RC |
| Applications | General Purpose | Product Type | Snubber |
Environmental
| Operating Temperature | - 55 C to + 85 C | ||
