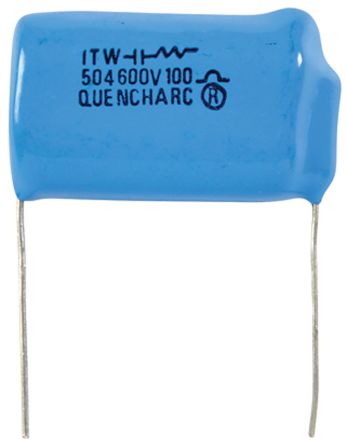

点击放大查看
504M06QE100
| Manufacturer | |
| Description | SUPP RC NETWORK .50UF 100OHM Film Capacitors 0.5uF 250V 100 Ohms Quencharc Ntwrk;RCSnubber;MetPolyester;Cap0.5uF;Res100Ohms;Pwr-Rtg0.5W;Radial Cornell-Dubilier Q 系列 500nF 100Ω 250 V 交流，600 V 直流 1路 RC 电容器, 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Snubber Film Capacitors | Tradename | Quencharc |
| Other Names | 338-3487 | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 20 % | Resistance | 100Ω |
| Capacitance | 0.5 uF | Voltage Rating | 600 V |
| Voltage - Supply | 250 V 交流，600 V 直流 | Resistance Tolerance | ±10% |
| ESR (Equivalent Series Resistance) | 100 Ohms | ||
Mechanical
| Depth | 15mm | Width | 15 mm |
| Height | 30mm | Length | 37mm |
| Packaging | Bulk | Termination | Radial |
| Lead Spacing | 30.5 mm | Mounting Type | 通孔 |
| Package / Case | 36.8 mm | Material - Blade | PolyesterMetallized |
| Size / Dimension | 37 x 15 x 30mm | Termination Style | Radial |
| Dielectric Material | Polyester | Number of Positions | 1 |
Product Info
| Type | Quencharc Arc Suppressor, Snubber Network Metallized Polyester Film Capacitor | Series | Q/QRL |
| Function | Y | Product Type | Snubber |
Environmental
| Operating Temperature | - 55 C to + 85 C | Operating Temperature - Junction | 85°C |
