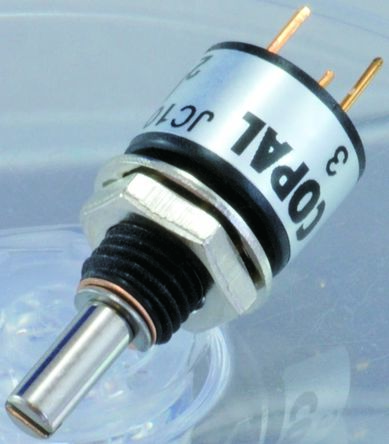

JC10-000-103N
| Manufacturer | |
| Description | Pot;CndPl;Rest10Kilohms;Panel;1Turn;Linear;Pwr-Rtg0.125W;ShaftDia3mm Copal Electronics 10kΩ ±20% 线性 导电塑料电位计 , 1/8W, 3 mm 直径轴, ±400ppm/°C, 通孔 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Linearity | ±2% | Tolerance | ±20% |
| Resistance | 10Kilohms | Resolution | Infinite |
| Power - Rated | 0.125W | Dielectric Strength | 500VAC |
| Frequency - Operating | 1 | Insulation Resistance | 100Megohms |
| Resistance - Initial (Ri) (Min) | 10kΩ | ||
Mechanical
| Taper | Linear | Height | 22.6mm |
| Torque | 1.96mNm | Diameter | 10mm |
| Mounting Type | 通孔 | Mounting Style | Panel |
| Rotation Angle | 360° | Terminal Style | 针 |
| Diameter - Shaft | 3mm | Material - Blade | ConductivePlastic |
| Size / Dimension | 10mmDia×14.6mmL | Mounting Hole Diameter | 6mm |
Product Info
| Function | Y | Number of Turns | 1 |
| Type Attributes | 线性 | ||
Environmental
| Switching Cycles | 5000000Cycles | Operating Temperature | +85°C |
| Temperature Coefficient | ±400ppm/°C | Temperature Coefficient (Typ) | ±400ppm/°C |
| Operating Temperature - Junction | +85°C | ||
