SF7382-2PG-3ES
| Manufacturer | |
| Description | Standard Circular Connector Panel Mt. 2#16 Pin Mini-Shield Solder Conn Circular PIN 2 POS Solder Cup ST Panel Mount 2 Terminal 1 Port CONN RCPT 2POS PNL MNT PIN PANELMINISHLD2#16SOLDER |
| Category |
Business
| Tradename | Mini-Con-X | Product Category | Standard Circular Connector |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 13 A |
Mechanical
| Packaging | Bulk | Cable Exit | No |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Type | 2Signal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Threaded | Mounting Style | Flange |
| Shell Material | Metal | Contact Material | Copper Alloy |
| Length - Overall | 26.1 | Termination Style | Solder Cup |
| 1st Contact Gender | PIN | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Material, Finish | Copper, Nickel Plated |
Product Info
| Type | Circular | Series | Mini-Con-X |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
6293SP
Conxall / Switchcraft
Standard Circular Connector MINI-CON GASKET-SPC MINI-CON-X GASKET - SPECIAL MINI-CON-XGASKET-SPECIAL

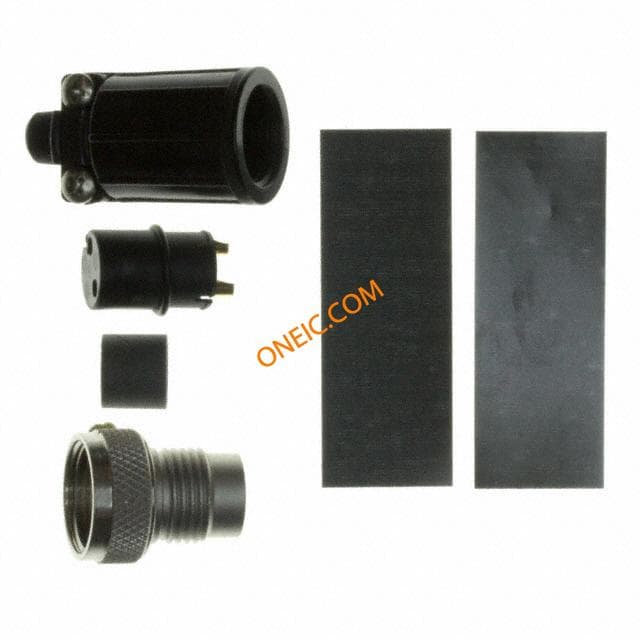

SF6382-2SG-520
