SF7282-8SG-3ES
| Manufacturer | |
| Description | Standard Circular Connector Panel Mt. 8#20 Skt Mini-Shield Solder Conn Circular SKT 8 POS Solder Cup ST Panel Mount 8 Terminal 1 Port CONN RCPT 8POS PNL MNT SKT 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts MINI-CON-X Series Minicon,Shielded,panelmount,8W,skt PANELMINI-SHLD8#20SOLDER Switchcraft MINI-CON-X 系列 8路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Mini-Con-X | Product Category | Standard Circular Connector |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 5.6A |
Mechanical
| Packaging | Bulk | Cable Exit | No |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Type | 8Signal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Threaded | Mounting Style | Flange |
| Shell Material | Metal | Contact Material | Copper Alloy |
| Housing Material | Nylon | Length - Overall | 25.4 |
| Termination Rows | 焊接 | Termination Style | Solder Cup |
| 1st Contact Gender | SKT | Number of Contacts | 8 |
| Number of Positions | 8 | Shell Material, Finish | Copper, Nickel Plated |
Product Info
| Type | Circular | Gender | Female |
| Series | MINI-CON-X | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Seal Rating | IP66, IP68 | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 115°C | ||
Documents & Media
Similar Parts
6293SP
Conxall / Switchcraft
Standard Circular Connector MINI-CON GASKET-SPC MINI-CON-X GASKET - SPECIAL MINI-CON-XGASKET-SPECIAL

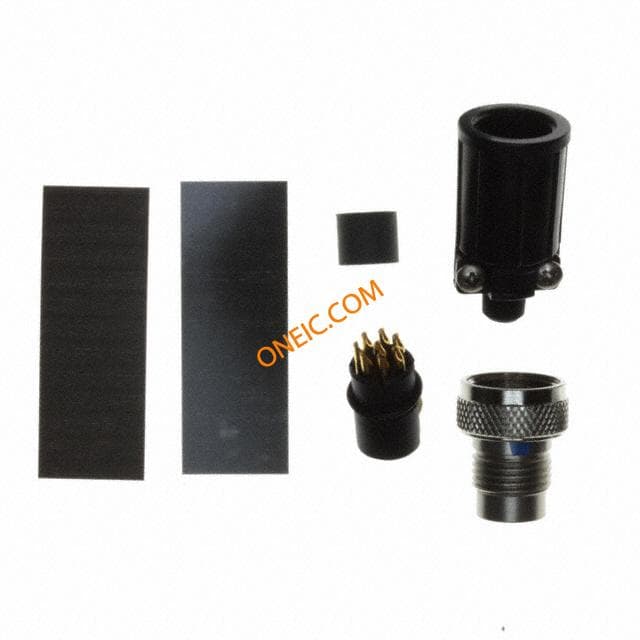

SF6282-8PG-520
