SF6282-8SG-520

Manufacturer	Switchcraft, Inc.
Description	Standard Circular Connector Cable Mt. 8#20 Skt Mini-Shield Solder Conn Circular SKT 8 POS Solder Cup ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS CABLE SKT CABLE8#20SKTMINI-SHLD
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Tradename	Mini-Con-X	Product Category	Standard Circular Connector
Standard Package	25	Factory Pack Quantity	25

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Compliant

Electrical

Voltage Rating

600VAC/DC

Current Rating (Max)

4.8 A

Mechanical

Diameter	19.3	Packaging	Bulk
Cable Exit	No	Orientation	Keyed
Shell Style	Receptacle	Termination	Solder Cup
Contact Type	8Signal	Mounting Type	Cable Mount
Shell Plating	Nickel	Connector Type	Plug, Female Sockets
Contact Finish	Gold Over Nickel	Fastening Type	Threaded
Mounting Style	Free Hanging	Shell Material	Metal
Contact Material	Copper Alloy	Length - Overall	50.8
Termination Style	Solder Cup	1st Contact Gender	SKT
Number of Contacts	8	Number of Positions	8
Shell Material, Finish	Copper, Nickel Plated

Product Info

Type	Circular	Series	Mini-Con-X
Features	Cable Clamp, Shielded	Product Type	Connectors

Environmental

Ingress Protection

IP66/68 - Dust Tight, Water Resistant, Waterproof

Operating Temperature

-40°C ~ 115°C

Documents & Media

PDF Document

SF Mini-Con-X Connector Series

Similar Parts

6283-513

Conxall / Switchcraft

Standard Circular Connector MINI-CON GROMMET LNG Standard Circular Connectors MINI-CON GROMMET LNG MINI CON-X GROMMET LONG MINICON-XGROMMETLONG

$3.9644

Details

6283-522

Conxall / Switchcraft

Standard Circular Connector MINI-CON GROMMET LNG MINI CON-X GROMMET LONG MINICON-XGROMMETLONG

$5.3720

Details

6282

Conxall / Switchcraft

Standard Circular Connector MINI COUPLING RING MINI COUPLING RING MINICOUPLINGRING

$2.0645

Details

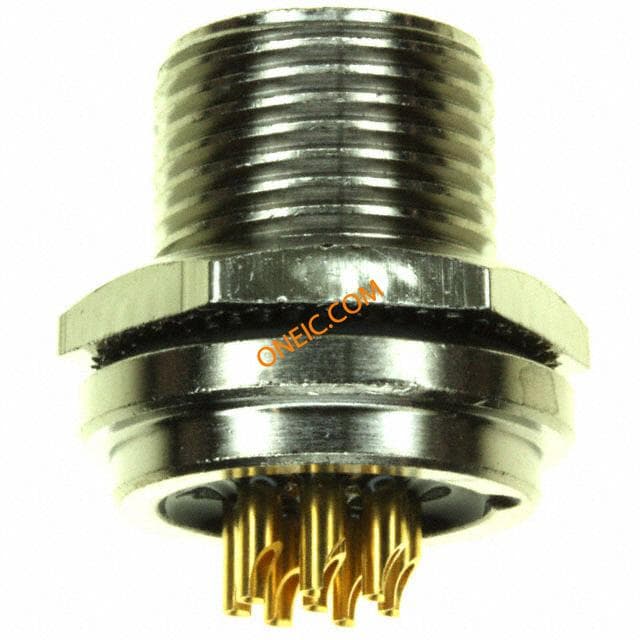

SF7282-8PG-3ES
