SF6282-4PG-520

Manufacturer	Switchcraft, Inc.
Description	Standard Circular Connector Cable Mt. 4#20 Pin Mini-Shield Solder Conn Circular PIN 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN PLUG 4POS CABLE PIN Mini con, Shielded,cable mount,4W,pin Minicon,Shielded,cablemount,4W,pin CABLE4#20PINMINI-SHL Switchcraft MINI-CON-X 系列 4路电缆安装直向连接器插头 , 公触点
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Tradename	Mini-Con-X	Product Category	Standard Circular Connector
Standard Package	25	Factory Pack Quantity	25

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Compliant

Electrical

Voltage Rating

600VAC/DC

Current Rating (Max)

5.6A

Mechanical

Outline	19.3mm	Diameter	19.3
Packaging	Bulk	Cable Exit	No
Shell Size	19.3mm	Orientation	Keyed
Shell Style	Plug	Termination	Solder Cup
Contact Type	4Signal	Mounting Type	Cable Mount
Shell Plating	Nickel	Connector Type	Plug, Male Pins
Contact Finish	Gold Over Nickel	Fastening Type	Threaded
Mounting Style	Free Hanging	Shell Material	Metal
Contact Material	Copper Alloy	Housing Material	Nylon
Length - Overall	50.8	Termination Rows	焊接
Termination Style	Solder Cup	1st Contact Gender	PIN
Number of Contacts	4	Number of Positions	4
Shell Material, Finish	Copper, Nickel Plated	Static Discharge Shielding	是

Product Info

Type	Circular	Gender	Male
Series	MINI-CON-X	Features	Cable Clamp, Shielded
Product Type	Connectors

Environmental

Seal Rating	IP66, IP68	Ingress Protection	IP66/68 - Dust Tight, Water Resistant, Waterproof
Operating Temperature	-40°C ~ 115°C

Documents & Media

PDF Document

SF Mini-Con-X Connector Series

Similar Parts

6283-513

Conxall / Switchcraft

Standard Circular Connector MINI-CON GROMMET LNG Standard Circular Connectors MINI-CON GROMMET LNG MINI CON-X GROMMET LONG MINICON-XGROMMETLONG

$3.9644

Details

6283-522

Conxall / Switchcraft

Standard Circular Connector MINI-CON GROMMET LNG MINI CON-X GROMMET LONG MINICON-XGROMMETLONG

$5.3720

Details

6282

Conxall / Switchcraft

Standard Circular Connector MINI COUPLING RING MINI COUPLING RING MINICOUPLINGRING

$2.0645

Details

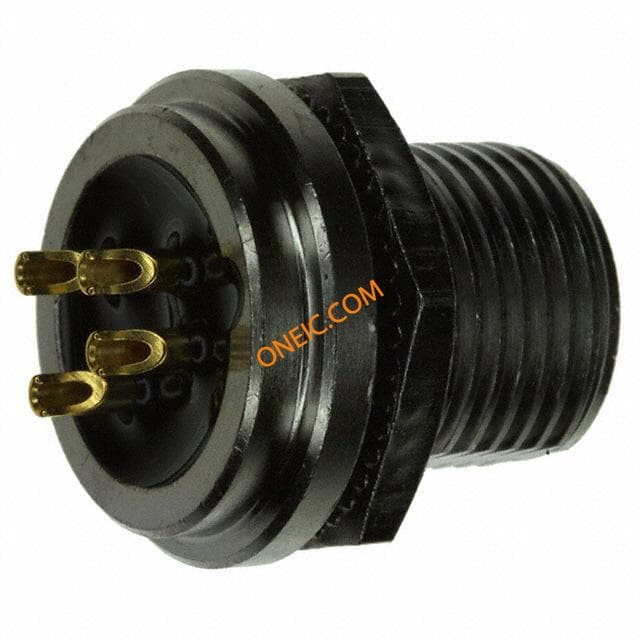

SF7282-4SG-3ES
