8382-2PG-321
| Manufacturer | |
| Description | Standard Circular Connector MINI-CON #16 CABLE TO CABLE Conn Field Installable PIN 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN RCPT 2POS CABLE PIN MINI-CON#16CABLETOCABLE |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 4.8 A to 13 A |
Mechanical
| Diameter | 15.9 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 18-16 |
| Orientation | Keyed | Termination | Solder Cup |
| Contact Type | 2Signal | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Contact Material | Brass | Length - Overall | 35.4 |
| Termination Style | Solder Cup | 1st Contact Gender | PIN |
| Number of Contacts | 2 | Number of Positions | 2 |
| Shell Material, Finish | Nylon | ||
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
6382-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6380-2SG-3DC
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
6380-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
6283-21
Conxall / Switchcraft
Standard Circular Connector MINI-CON GROMMET SH MINI CON-X GROMMET SHORT MINICON-XGROMMETSHORT

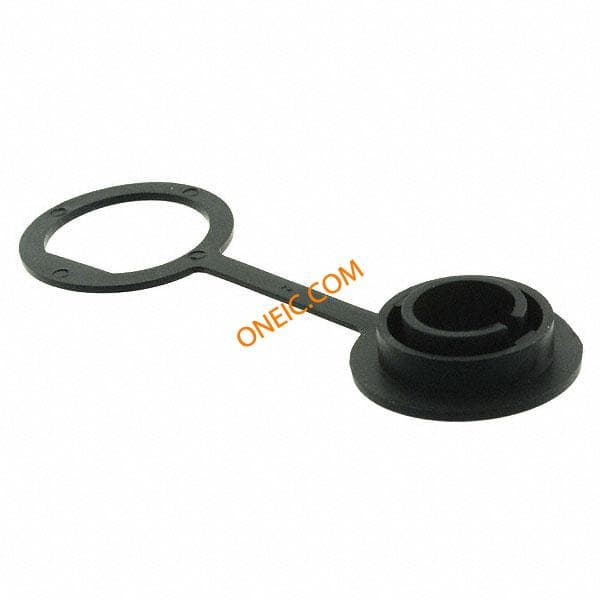

6295
Conxall / Switchcraft
Standard Circular Connector DUST CAP MINI-CON-X Connector Accessories Santoprene Rubber Black CONN DUST CAP MINICONX DUST CAP, RUBBER WEATHERTITECAP
6382-2SG-513
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-321
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-516
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6380-2SG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
6380-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP

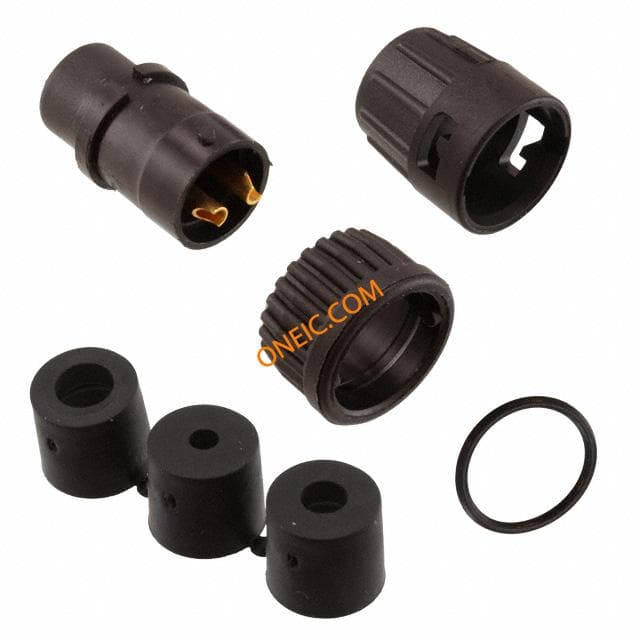

6382-2SG-3DC
