8380-2PG-318
| Manufacturer | |
| Description | Standard Circular Connector MINI-CON CBL-CBL #16 CRIMP Conn Field Installable PIN 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN RCPT 2POS CABLE PIN MINI-CONCABLE-CABLE#16CRIMP |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 4.8 A to 13 A |
Mechanical
| Color | Black | Diameter | 15.9 |
| Packaging | Bulk | Cable Exit | No |
| Wire Gauge | 18-16 | Orientation | Keyed |
| Termination | Crimp | Contact Type | 2Signal |
| Mounting Type | Cable Mount | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Cable | Contact Material | Brass |
| Length - Overall | 35.4 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Material, Finish | Nylon |
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP 67 | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
6382-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6380-2SG-3DC
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
6380-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
357-124
Conxall / Switchcraft
Standard Circular Connector TURRET LOCATOR SIZE 12,16 & 20 Assembly Tools Turret Locator-Size 12,16 And 20 TURRET LOCATOR-SIZE 1216 & 20
356-16
Conxall / Switchcraft
Hand Tools INSERTION BIT FOR #16 PIN-SKT. TOOL CONTACT INSERTION BIT 16 INSERTION BIT FOR #16 PIN-SKT. Insertion Bit For #16 Pin-Skt. INSERTIONBITFOR#16PIN-SKT.
6382-2SG-513
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-321
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-516
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6380-2SG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
6380-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP

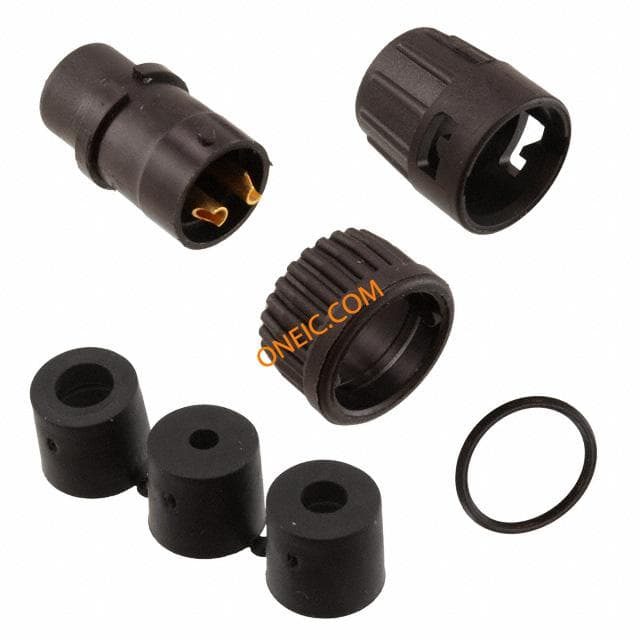

6382-2SG-3DC
