8282-2SG-3DC
| Manufacturer | |
| Description | Standard Circular Connector 2P SCKT CBL TO CBL DAISY CHAIN GRMMT Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN RCPT 2POS CABLE SKT Connector;#20;SolderCup;2;Socket;GoldoverNickel600V |
| Category |
Business
| Tradename | Mini-Con-X | Product Category | Standard Circular Connector |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Approval Agency | ULRecognized/CSA | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 7.5A |
Mechanical
| Diameter | 15.9 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 20 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Type | 2Signal |
| Mounting Type | Cable Mount | Shell Plating | Gold over Nickel |
| Angle of Throw | Straight | Cable Diameter | 0.375" |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Free Hanging |
| Contact Material | Brass | Housing Material | Plastic |
| Length - Overall | 35.4 | Primary Material | Sealed |
| Termination Style | Solder Cup | 1st Contact Gender | SKT |
| Number of Contacts | 2 | Contact Tail Length | #20 |
| Number of Positions | 2 | Shell Material, Finish | Nylon |
| Contact Layout, Typical | 2 | ||
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Features | CabletoCable | Manufacturer | Mini-Con-XSeries |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
6282-2PG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable PIN 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE PIN MINI-CONCABLE#20SOLDER
6280-2PG-321
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable PIN 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE PIN MINI-CONCABLE#20CRIMP

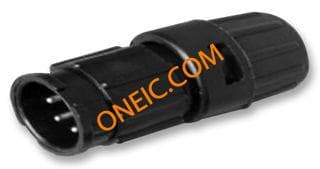

8282-2SG-3XX
