8280-5PG-315
| Manufacturer | |
| Description | Standard Circular Connector MINI-CON CBL-CBL #20 CRIMP Conn Field Installable PIN 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN RCPT 5POS CABLE PIN MINI-CONCABLE-CABLE#20CRIMP |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 4.8 A to 13 A |
Mechanical
| Diameter | 15.9 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 24-20 |
| Orientation | Keyed | Termination | Crimp |
| Contact Type | 5Signal | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Contact Material | Brass | Length - Overall | 35.4 |
| Termination Style | Crimp | 1st Contact Gender | PIN |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Material, Finish | Nylon | ||
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
6280-5SG-513
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS CABLE SKT MINI-CONCABLE#20CRIMP
357-124
Conxall / Switchcraft
Standard Circular Connector TURRET LOCATOR SIZE 12,16 & 20 Assembly Tools Turret Locator-Size 12,16 And 20 TURRET LOCATOR-SIZE 1216 & 20

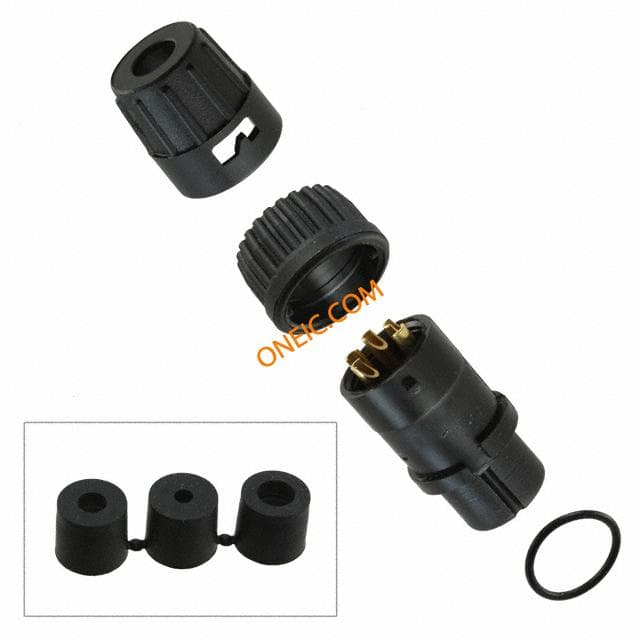

6282-5SG-3DC
