6280-3PG-318
| Manufacturer | |
| Description | Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE PIN MINI-CONCABLE#20CRIMP |
| Category |
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 4.8 A to 13 A |
Mechanical
| Packaging | Bulk | Wire Gauge | 18-16 |
| Orientation | Keyed | Termination | Crimp |
| Weight (g): | 10.00000 | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Material, Finish | Nylon | ||
Product Info
| Series | Mini-Con-X | Product Type | Connectors |
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
8280-3SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN RCPT 3POS CABLE SKT MINI-CONCABLE-CABLE#20CRIMP
7280-3SG-300
Conxall / Switchcraft
Standard Circular Connector MINI-CON PAN MT #20 CRIMP CONN RCPT 3POS PNL MNT SKT connector,Panelount,#20contacts,Crimpcontact,3,socket,withhexnut,gas

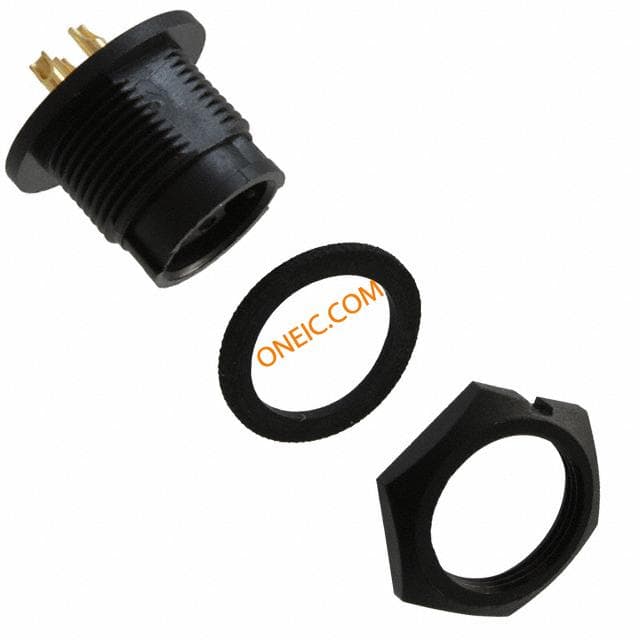

7282-3SG-300
Conxall / Switchcraft
Standard Circular Connector 3P SOCKET PNL MNT Conn Field Installable SKT 3 POS Solder Cup ST Panel Mount 3 Terminal 1 Port CONN RCPT 3POS PNL MNT SKT CONNECTOR, PANEL, FEMALE, 3WAY Connector;#20;SolderCup;3;Socket;GoldoverNickel600V

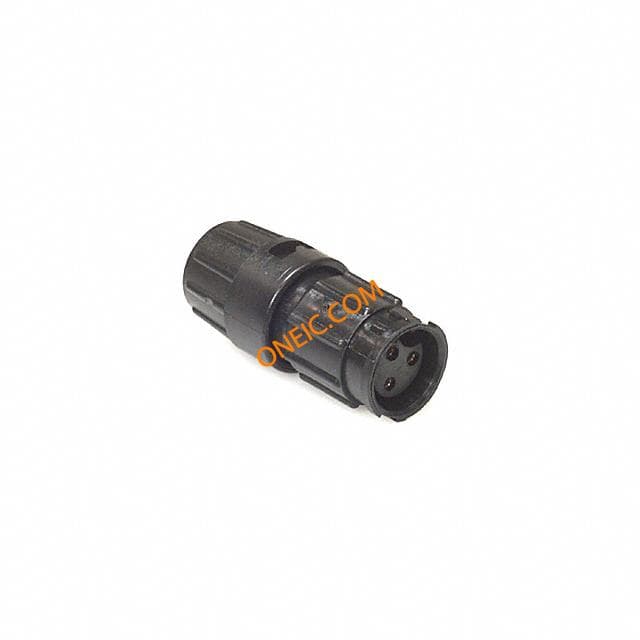

8282-3SG-3DC
