4182-2PG-3ES

Manufacturer	Switchcraft, Inc.
Description	Standard Circular Connector MLT-CON PAN SOLDER Conn Field Installable PIN 2 POS Solder Cup ST Panel Mount 2 Terminal 1 Port Standard Circular Connectors MLT-CON PAN SOLDER CONN RCPT 2POS PNL MNT PIN MULTI-CONPANEL#12SOLDER
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Lead Time	44 Days	Subcategory	Connector Circular
Standard Package	25	Factory Pack Quantity	25

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Supplier Unconfirmed

Electrical

Voltage Rating

600V

Current Rating (Max)

1.95 A to 23 A

Mechanical

Depth	25.4	Height	29.3
Diameter	29.3	Packaging	Bulk
Cable Exit	No	Wire Gauge	14-12
Orientation	Keyed	Termination	Solder Cup
Contact Type	2Signal	Mounting Type	Panel Mount
Connector Type	Receptacle, Male Pins	Contact Finish	Gold Over Nickel
Fastening Type	Bayonet Lock	Mounting Style	Panel
Contact Material	Brass	Termination Style	Solder Cup
1st Contact Gender	PIN	Number of Contacts	2
Number of Positions	2	Shell Material, Finish	Nylon

Product Info

Type	Field Installable	Series	Multi-Con-X
Product Type	Connectors

Environmental

Ingress Protection

Weathertight

Operating Temperature

-40°C ~ 115°C

Documents & Media

PDF Document

Multi-Con-X Connectors

Similar Parts

3180-2SG-328

Conxall / Switchcraft

Standard Circular Connector MULTI-CON CABLE CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MULTI-CONCABLE#12CRIMP

$35.8360

Details

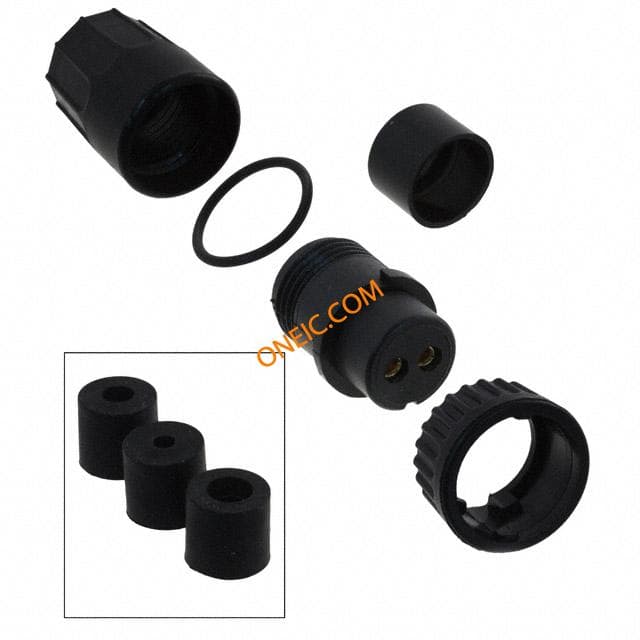

3182-2SG-3DC

Conxall / Switchcraft

Standard Circular Connector 2P SOCKET CBL END DAISY CHAIN GRMMT Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port Standard Circular Connectors 2P SOCKET CBL END DAISY CHAIN GRMMT CONN PLUG 2POS CABLE SKT CONNECTOR, FREE, FEMALE, 2WAY Connector;#12;SolderCup;2;Socket;GoldoverNickel;0.365in.;600V

$110.0390

Details

3180-2SG-3DC

Conxall / Switchcraft

Standard Circular Connector MULTI-CON CABLE CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port Standard Circular Connectors MULTI-CON CABLE CRIMP CONN PLUG 2POS CABLE SKT MULTI-CONCABLE#12CRIMP

$30.7360

Details

3182-2SG-528

Conxall / Switchcraft

Standard Circular Connector MULTI-CON CABLE SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port Standard Circular Connectors MULTI-CON CABLE SOLDER CONN PLUG 2POS CABLE SKT MULTI-CONCABLE#12SOLDER

$229.0716

Details

3180-2SG-518

Conxall / Switchcraft

$29.7160

Details

3182-2SG-315

Conxall / Switchcraft

$42.4320

Details

3182-2SG-530

Conxall / Switchcraft

$136.0000

Details

3180-2SG-521

Conxall / Switchcraft

$29.7160

Details

3182-2SG-318

Conxall / Switchcraft

$39.8480

Details

3180-2SG-530

Conxall / Switchcraft

$48.2800

Details

3180-2SG-524

Conxall / Switchcraft

$29.7160

Details

3182-2SG-321

Conxall / Switchcraft

$31.9600

Details

3182-2SG-328

Conxall / Switchcraft

$42.2960

Details

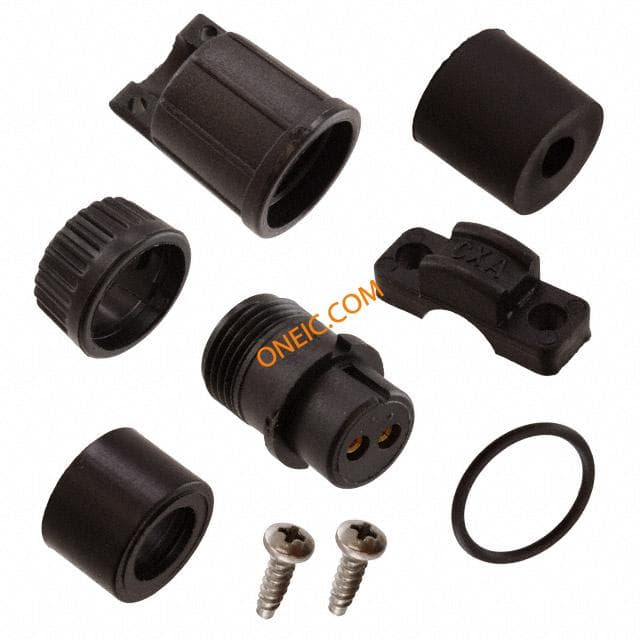

3182-2SG-515
