点击放大查看
17281-3SG-300
| Manufacturer | |
| Description | Standard Circular Connector MICRO-CON PANEL #20 PC Conn Field Installable SKT 3 POS Solder ST Panel Mount 3 Terminal 1 Port Standard Circular Connectors MICRO-CON PANEL #20 PC CONN RCPT 3POS PNL MNT SKT MICRO-CONPANEL#20PC |
| Category |
Business
| Lead Time | 44 Days | Subcategory | Connector Circular |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 7.5A |
Mechanical
| Depth | 15.9 | Height | 18.2 |
| Diameter | 18.2 | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 24-20 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 3Signal | Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Contact Material | Brass | Termination Style | Solder Tail |
| 1st Contact Gender | SKT | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Material, Finish | Thermoplastic |
Product Info
| Type | Field Installable | Series | Micro-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 75°C |
Documents & Media
Similar Parts
16295
Conxall / Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap Receptacle DUST CAP MICRO-CON-X MICRO CON-X DUST CAP DUST CAP, RUBBER DUST CAP, MINI EN3 MICROCON-XRECEPCAP Switchcraft CON X 系列 IP67 防尘盖
16282-3PG-315
Conxall / Switchcraft
Standard Circular Connector 3P PIN CABLE END Conn Field Installable PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port Standard Circular Connectors 3P PIN CABLE END CONN PLUG 3POS CABLE PIN CircularCableConnector,CableEnd;20;SolderCup;3;Pin;0.15to0.17in.
16282-3PG-311
Conxall / Switchcraft
Standard Circular Connector 3P PIN CABLE END O.D.=.09-.14 Conn Field Installable PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port Standard Circular Connectors 3P PIN CABLE END O.D.=.09-.14 CONN PLUG 3POS CABLE PIN CircularCableconnector,Micro-ConCableEnd,20,SolderCup,3Contacts Switchcraft MICRO-CON-X 系列 3路 电缆安装 直向 连接器 插头 , 公触点, 嵌入式接合

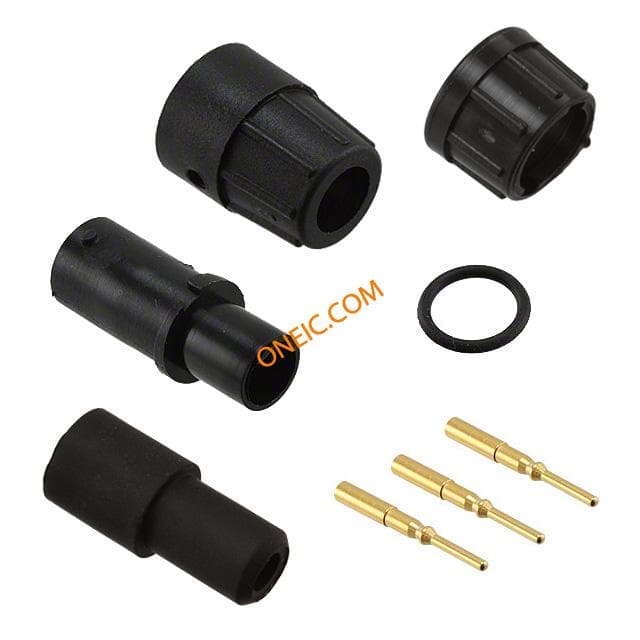

16280-3PG-311
