点击放大查看
13282-18SG-326
| Manufacturer | |
| Description | Standard Circular Connector 18P SOCKET CABLE END O.D.=.26-.30 Conn Field Installable SKT 18 POS Solder ST Cable Mount 18 Terminal 1 Port Standard Circular Connectors 18P SOCKET CABLE END O.D.=.26-.30 CONN PLUG 18POS CABLE SKT MAXI-CONCABLE#20SOLDER |
| Category |
Business
| Tradename | Maxi-Con-X | Other Names | SC1187 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600V | ||
Mechanical
| Diameter | 26.9 | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Contact Type | 18Signal | Mounting Type | Cable Mount |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Contact Material | Brass |
| Length - Overall | 63.5 | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 18 | Number of Positions | 18 |
| Shell Material, Finish | Nylon | ||
Product Info
| Type | Field Installable | Series | Maxi-Con-X |
| Features | Cable Clamp | Product Type | Connectors |
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
14291-18PG-300
Conxall / Switchcraft
Standard Circular Connector MAXI-CON PANEL #20 PC TAILS Conn Field Installable PIN 18 POS Solder ST Panel Mount 18 Terminal 1 Port Standard Circular Connectors MAXI-CON PANEL #20 PC TAILS CONN RCPT 18POS PNL MNT PIN MAXI-CONPANEL#20PCTAILS

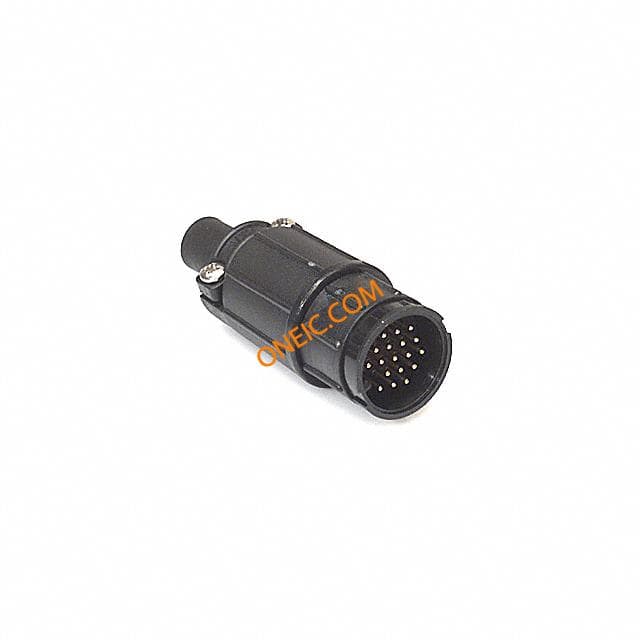

15282-18PG-326
