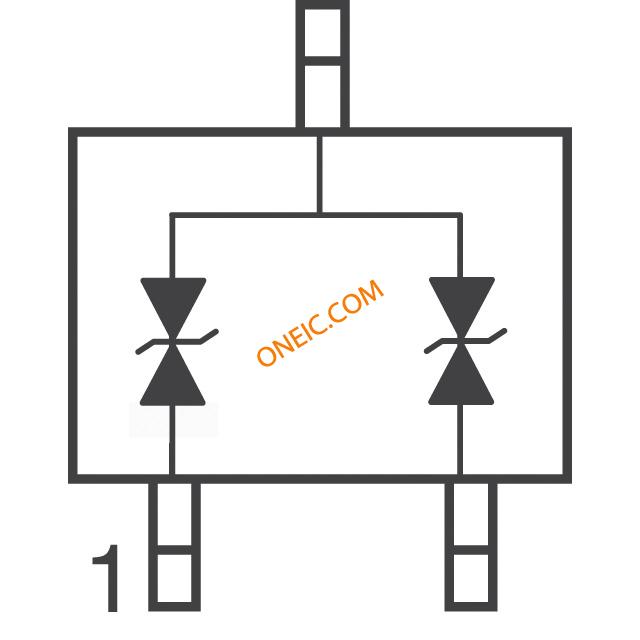

CPDT-12V
| Manufacturer | |
| Description | ESD Suppressors ESD BIDIRECTIONAL 2CH 12V TVS DIODE 12VWM 25VC SOT23 ESD Suppressors / TVS Diodes ESD BIDIRECTIONAL 2CH 12V |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 641-1398-1 | Product Category | ESD Suppressors |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | ESD Protection | 8 kV |
Electrical
| Capacitance | 12 pF | Voltage - Supply | 12V |
| Number of Channels | 2 Channel | Power - Peak Pulse | 25W |
| Voltage - Clamping | 25 V | Capacitance @ Vr, F | 12 pF |
| Voltage - Breakdown | 17 V | Power Line Protection | No |
| Bidirectional Channels | 2 | Power - Average Forward | 25 W |
| Power Dissipation (Max) | 225 mW | Current - Peak Pulse (8/20us) | 1 A |
| Current - Peak Pulse (10/1000us) | 1A (8/20µs) | ||
Mechanical
| Packaging | Reel | Mounting Type | Surface Mount |
| Package / Case | SOT-23 | Termination Style | SMD/SMT |
| Supplier Device Package | SOT-23-3 | ||
Product Info
| Type | Zener | Series | CPDT-12V |
| Polarity | Bidirectional | Applications | General Purpose |
| Manufacturer | Comchip Technology | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
