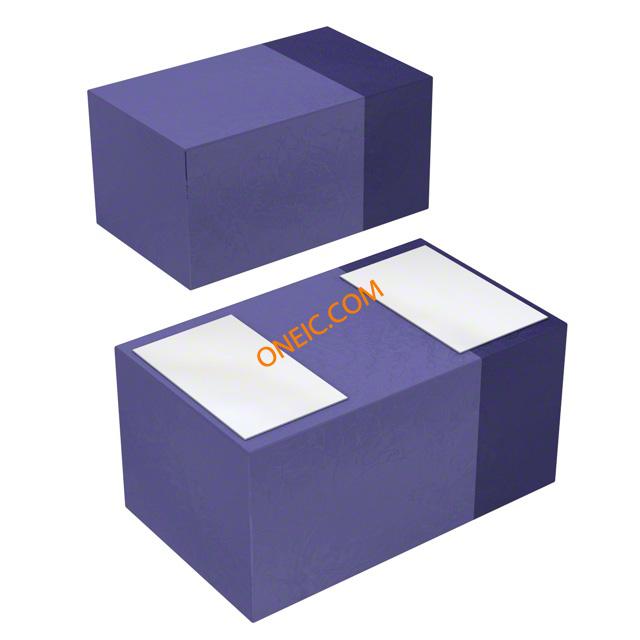

CDBQR0140L
| Manufacturer | |
| Description | Schottky Diodes & Rectifiers LOW VF DFN 100mA,40V Sm. Sgnl. Schottky DIODE SCHOTTKY 40V 0.1A 0402 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Schottky Diodes | Other Names | 641-1273-2 |
| Product Category | Schottky Diodes & Rectifiers | Standard Package | 5,000 |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | Small Signal = | Current - Test | 30µA @ 10V |
| Voltage - Supply | 0.55 V | Capacitance @ Vr, F | 6pF @ 10V, 1MHz |
| Voltage - Input (Min) | 550mV @ 100mA | Power - Average Forward | 125 mW |
| Power Dissipation (Max) | 125 mW | Voltage Regulation - Load | 40 V |
| Current - Peak Pulse (8/20us) | 1 A | Current - Reverse Leakage @ Vr | 30 uA |
| Current - DC Forward (If) (Max) | 100 mA | Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 100mA | Current - Continuous Drain (Id) @ 25degC | 100 mA |
Mechanical
| Packaging | Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 0402 |
| Supplier Device Package | 0402 | ||
Product Info
| Series | CDBQR0140 | Diode Type | Schottky |
| Technology | Si | Manufacturer | Comchip Technology |
Environmental
| Operating Temperature - Junction | 125°C (Max) | ||
