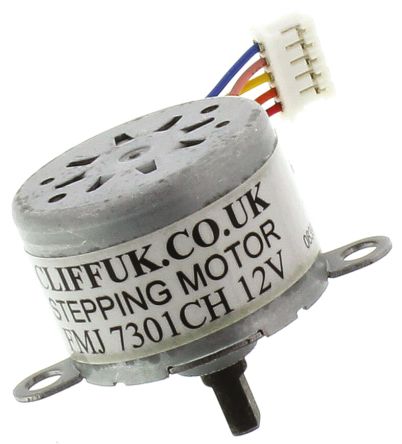

FMJ7301CH
| Manufacturer | |
| Description | Stepper Motor 12V/64:1 Motor: DC; stepper, unipolar; 5÷12VDC; step 5,6°; IP50; Trans:1:64 Cliff Electronics 5.625 °, 11.25 ° 单极 双极，单极 步进电机 , 5线, 380gcm, 12 V |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Voltage Rating | 12 V | Voltage - Supply | 5...12V DC |
| Current Rating (Max) | 32 mA | Turns Ratio - Primary:Secondary | 1:64 |
Mechanical
| Depth | 19mm | Weight | 0.04 kg |
| Motor Type | stepper, unipolar | Step Angle | 11.25 °, 5.625 ° |
| Wire Gauge | 单极 | Actuator Type | 双极，单极 |
| Shaft Diameter | 3mm | Diameter - Shaft | 3mm |
| Package Quantity | 5 | Number of Wire Entries | 5 |
| Length - Shaft and Bearing | 6mm | ||
Product Info
| Spg | 5 | Features | step 5,6° |
| Arrangement | Unipolar | Number of Units | 1 |
Environmental
| Ingress Protection | IP50 | ||
