CS5466-ISZ
| Manufacturer | |
| Description | Power/Energy 24-Pin SSOP IC ENERGY METERING 1PHASE 24SSOP Current & Power Monitors & Regulators Low-Cost Pwr/Energy w/Pulse Output IC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Monitors | Product Category | Current & Power Monitors & Regulators |
| Standard Package | Rail / Tube | Factory Pack Quantity | 59 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 2.4 V to 2.6 V | Input Impedance | 30 kOhm |
| Current - Output | 2.9mA | Current - Supply | 70 nA |
| Voltage - Supply | 4.75 V ~ 5.25 V | Measurement Error | 0.1% |
| Voltage - I/O Low | 0.2V | Voltage - I/O High | 0.8V |
| Voltage - Input (Min) | 3.135 V to 5.25 V | ||
Mechanical
| Packaging | Tube | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 24SSOP |
| Supplier Device Package | 24-SSOP | ||
Product Info
| Series | CS5466 | Meter Type | Single Phase |
| Manufacturer | Cirrus Logic | RF Family/Standard | CS5466 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts

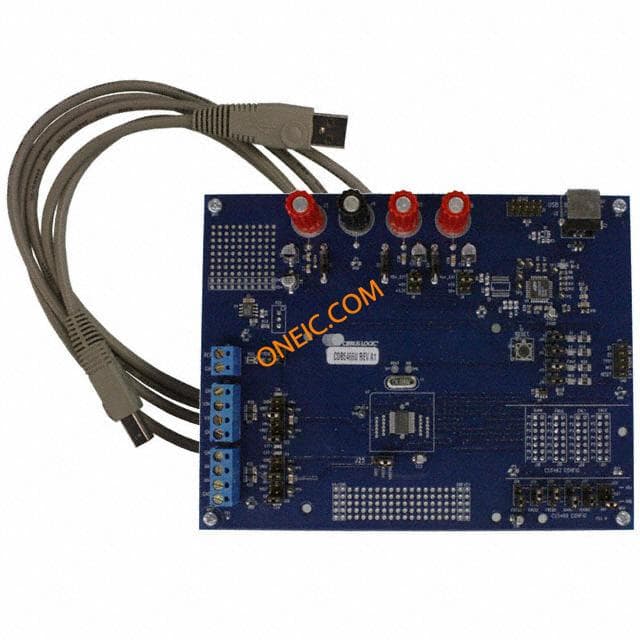

CDB5466U
