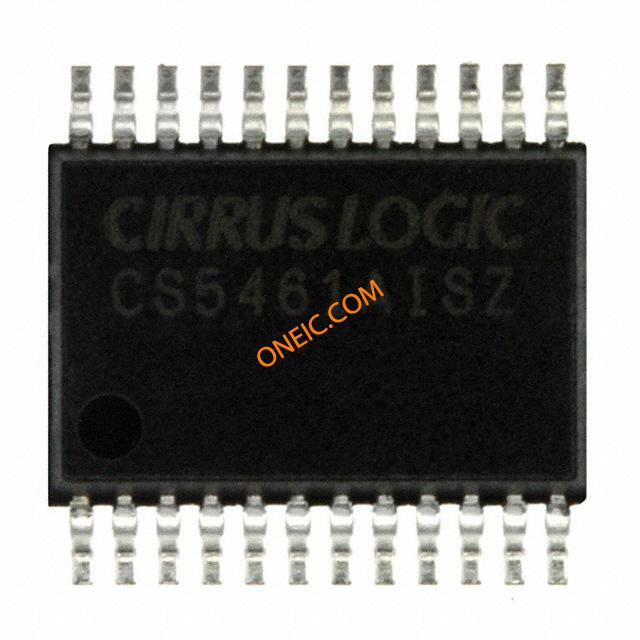

CS5461A-ISZ
| Manufacturer | |
| Description | Power/Energy 24-Pin SSOP IC ENERGY METERING 1PHASE 24SSOP Current & Power Monitors & Regulators Single-Phase Bi-Dir Power/Energy IC Integrated circuit: electric energy meter; SSOP24; 4.75÷5.25VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Monitors | Product Category | Current & Power Monitors & Regulators |
| Standard Package | Rail / Tube | Factory Pack Quantity | 59 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Accuracy | 0.1% | Frequency | 4096kHz |
| Power - Rated | 500mW | Voltage - I/O | 0.8V |
| Voltage Rating | 2.4 V to 2.6 V | Input Impedance | 30 kOhm |
| Current - Output | 2.9mA | Current - Supply | 2.9mA |
| Voltage - Supply | 4.75 V ~ 5.25 V | Measurement Error | 0.1% |
| Voltage - I/O Low | 0.2V | Voltage - I/O High | 0.8V |
| Current Rating (Max) | 2.9mA | Voltage - Input (Min) | 2.4 V to 2.6 V |
Mechanical
| Weight | 1 g | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 24SSOP | Supplier Device Package | 24-SSOP |
Product Info
| Type | electric energy meter | Series | CS5461A |
| Features | 1-phase | Meter Type | Single Phase |
| Manufacturer | Cirrus Logic | Number of Units | 1 |
| RF Family/Standard | CS5461 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
