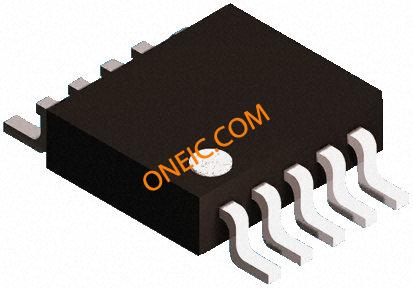

CS5343-CZZ
| Manufacturer | |
| Description | ADC Dual Delta-Sigma 96ksps 24-bit Serial 10-Pin TSSOP Rail IC ADC 24BIT SRL 96KHZ 10-TSSOP CS5343-CZZ, 24-Bit Analogue to Digital Converter, Dual, Serial, 10-Pin TSSOP Audio A/D Converter ICs 98dB 24-Bit 96kHz Stereo ADC A/D converter; Channels:2; 24bit; 96ksps; 3.1÷5.25VDC; TSSOP28 Cirrus Logic , 双 24 位 ADC, 串行接口, 10针 TSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Audio ADCs | Product Category | Audio A/D Converter ICs |
| Standard Package | Rail / Tube | Factory Pack Quantity | 96 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Interface | Serial | Input Type | Voltage |
| Resolution | 24 Bit | Input Signal | Single Ended |
| Power - Input | 单 | Data Interface | Serial |
| Input Polarity | Bipolar | Voltage Rating | +/- 0.937 V, +/- 1.398 V |
| Data Rate (Max) | 96 KSPs | Voltage - Supply | 3.1 V ~ 3.5 V, 4.75 V ~ 5.25 V |
| Digital I/O Lines | 串行 | Power Supply Type | Single |
| Resolution (Bits) | 24 b | Number of Channels | 2 |
| Sampling Frequency | 96 ksps | Number of ADCs / DACs | 2 |
| Voltage Supply Source | Single Supply | Power - Average Forward | 40 mW |
| Sampling Rate (Per Second) | 96k | S/N Ratio, ADCs / DACs (db) Typ | 98 dB |
Mechanical
| Width | 3mm | Height | 0.95mm |
| Length | 3mm | Weight | 1.88 g |
| Packaging | Tray | Mounting Type | Surface Mount |
| Diameter - Bit | 24 b | Mounting Style | SMD/SMT |
| Number of Pins | 10 | Package / Case | 10TSSOP |
| Package Cooled | TSSOP | Package Quantity | 10 |
| Size / Dimension | 3 x 3 x 0.95mm | Number of Positions | 10 |
| Supplier Device Package | 10-TSSOP | Shell Size - Insert (Convert To) | Delta Sigma |
Product Info
| Spg | 10 | Type | ADC, Audio |
| Series | CS5343 | Function | Y |
| Architecture | Delta-Sigma | Manufacturer | Cirrus Logic |
| Number of Units | 1 | Number of A/D Converters | 2 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
