CS4334-KSZ
| Manufacturer | |
| Description | DAC 2-CH Delta-Sigma 24-bit 8-Pin SOIC IC DAC STER 24BIT 96KHZ 8-SOIC CS4334-KSZ, Audio DAC Dual 24bit-, 96ksps ±5%FSR Serial, 8-Pin SOIC Audio D/A Converter ICs Stereo DAC 24-Bit 96kHz D/A converter; 24bit; 96ksps; Channels:2; 4.75÷5.5VDC; SO8 双 串行 96ksps 24 位 音频数模转换器, ±5%FSR误差, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Audio DACs | Product Category | Audio D/A Converter ICs |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Data Rate | 96ksps | Interface | Serial |
| Full Scale | ±5(Typ) %FSR | Resolution | 24 Bit |
| Output Type | Voltage | Power - Input | 单 |
| Data Interface | Serial | Number of Bits | 24 |
| Power - Output | Bipolar | Data Rate (Max) | 96 Ksps |
| Number of DAC's | 2 | Voltage - Supply | 5 V |
| Digital I/O Lines | 串行 | Number of Outputs | 2 |
| Power Supply Type | Single | Resolution (Bits) | 24bit |
| Voltage Reference | Internal | Number of Channels | 2 |
| Sampling Frequency | 96 kS/s | Voltage Supply Source | Single Supply |
| Gain Bandwidth Product | +/- 5 % FSR | Power - Average Forward | 104 mW |
| Power Dissipation (Max) | 104 mW | Number of Outputs and Type | 2 Voltage, Bipolar |
| Sampling Rate (Per Second) | 96k | Accuracy - Voltmeter; Ammeter | ±5%FSR |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 1.29 g |
| Packaging | Tube | Mounting Type | Surface Mount |
| Connector Type | Serial | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Package Quantity | 10 |
| Size / Dimension | 5 x 4 x 1.5mm | Number of Positions | 8 |
| Supplier Device Package | 8-SOIC | Shell Size - Insert (Convert To) | Delta Sigma |
Product Info
| Spg | 10 | Type | D/A converter |
| Series | CS4334 | Polarity | Bipolar |
| Architecture | Delta-Sigma | Manufacturer | Cirrus Logic |
| Number of Units | 1 | Number of A/D Converters | 2 |
Environmental
| Operating Temperature | -10 to 70 °C | ||
Documents & Media
Similar Parts

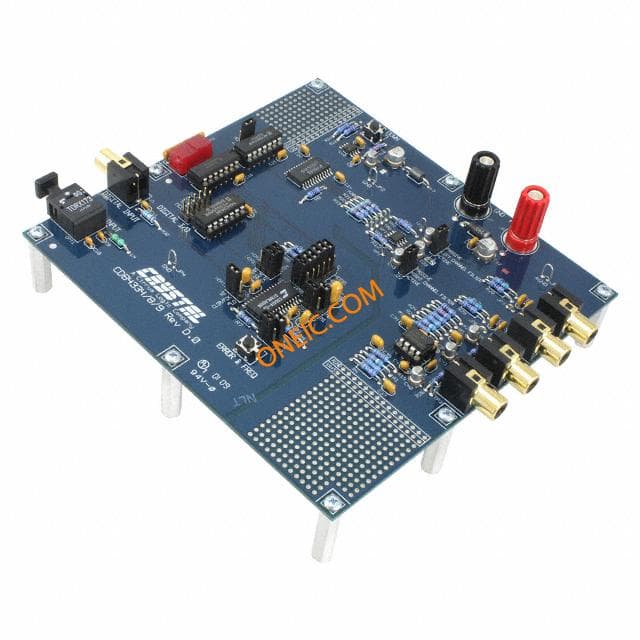

CDB4334
