CS4271-CZZ
| Manufacturer | |
| Description | Audio Codec 2ADC / 2DAC 24-Bit 28-Pin TSSOP Tube IC CODEC AUD 24BIT 114DB 28TSSOP Interface - CODECs Stereo Audio CODEC 108 dB 192 kHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Audio CODECs | Product Category | Interface - CODECs |
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Noise | - 98 dB ADC/- 100 dB DAC | Interface | Serial (I2C, SPI) |
| Resolution | 24 bit | Sigma Delta | Yes |
| Data Interface | Serial | Data Rate (Max) | 192 kSPs |
| Number of DAC's | 2 | Voltage - Supply | 3.3|5 V |
| Resolution (Bits) | 24 Bit | Number of Channels | 2ADC /2 DAC |
| Sampling Frequency | 192 ksps | Number of ADCs / DACs | 2 / 2 |
| Voltage - Supply, Analog | 4.75 V ~ 5.25 V | Voltage - Supply, Digital | 3.1 V ~ 5.25 V |
| Dynamic Range, ADCs / DACs (db) Typ | 108 / 114 | ||
Mechanical
| Height | 0.9 mm | Length | 9.7 mm |
| Bandwidth | 10 Hz to 20 kHz | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 28TSSOP | Supplier Device Package | 28-TSSOP |
Product Info
| Type | General Purpose | Series | CS4271 |
| Manufacturer | Cirrus Logic | ||
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

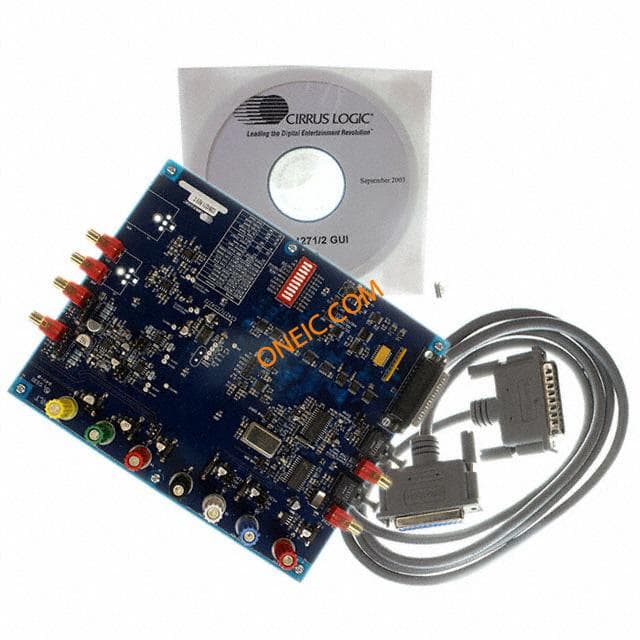

CDB4271
