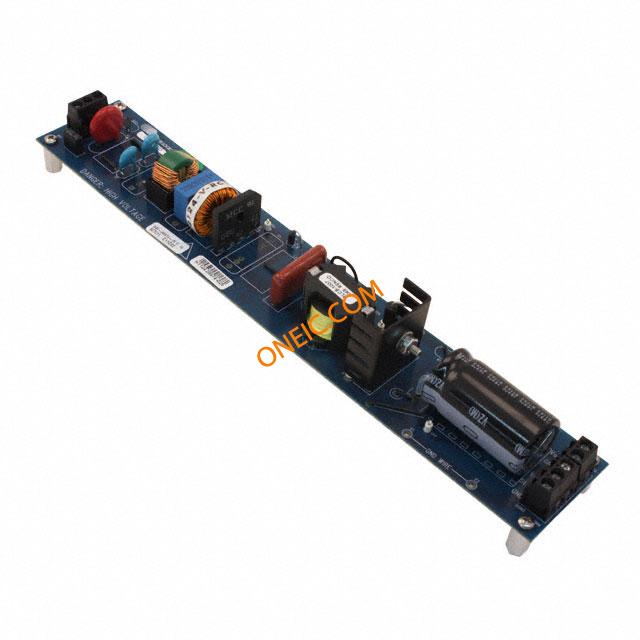

CDB150X-01-Z
| Manufacturer | |
| Description | DEVELOPMENT BOARD FOR CS1501 Power Management IC Development Tools DEV BOARD FOR CS1501 CS1501, PFC, 120W, DEMO BOARD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Management Development Tools | Product Category | Power Management IC Development Tools |
| Standard Package | 1 | ||
Compliance
| RoHS | No | Tariff No | 90308200 |
Electrical
| Voltage Rating | 400 V | Number of Elements | :(Not Applicable) |
Mechanical
| Weight | 0.2 | Size / Dimension | 254 mm x 44 mm |
Product Info
| Type | Power Factor Correction | Contents | Board |
| Embedded | No | Features | :Variable On Time, Variable Frequency, 400V Output Voltage, 90W Rated Power, 97% Efficiency |
| Kit Type | :Power Management | Kit Contents | :Board, Datasheet |
| Main Purpose | Power Management, Power Factor Correction | Tool Type Feature | CS1501 |
| Primary Attributes | 400V, 90W output | Utilized IC / Part | CS1501 |
| Chipset Manufacturer | :Cirrus Logic | Secondary Attributes | 90 ~ 265 VAC universal input |
| Application Specifics | :Power Factor Correction (PFC) | ||
