S-304-DB
| Manufacturer | |
| Description | Jones Plugs & Sockets 4P JONES SOCKET W/DEEP BRCKT EYELETS CONN SOCKET 4POS CADMIUM SOLDER connector;jones socket;deep bracket;solder eyelets;polarized;4 contact connector,jonessocket,deepbracket,soldereyelets,polarized,4contact |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | S304DB | Product Category | Jones Plugs & Sockets |
| Standard Package | 500 | ||
Compliance
| RoHS | Non Compliant | Approval Agency | CSA,UL |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 10A |
Mechanical
| Color | Black | Material | Thermoplastic |
| Packaging | Bulk | Termination | Solder Eyelet(s) |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Socket, Jones | Contact Finish | Cadmium |
| Fastening Type | Push-Pull | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Length - Overall | 2.109" |
| Primary Material | Jones | Number of Contacts | 4 |
| Dielectric Material | Phenolic | Number of Positions | 4 |
| Material - Insulation | Phenol Formaldehyde (Phenolic) | ||
Product Info
| Type | CableSocket | Features | Flange |
| Manufacturer | 300Series | ||
Environmental
| Operating Temperature | 105°C | ||
Documents & Media
PDF Document
Similar Parts
P-304-LAB
Cinch
Jones Plugs & Sockets 4P PLUG SLDR EYELET W/O ANGLE BRACKET CONN PLUG 4POS CADMIUM SOLDER Cadmiumsolder,connectorplug4pos
$10.6080
Details
P-304-CCT
Cinch
Jones Plugs & Sockets 4C CBL MNT PLUG CONN PLUG 4POS CADMIUM SOLDER
$24.2760
Details

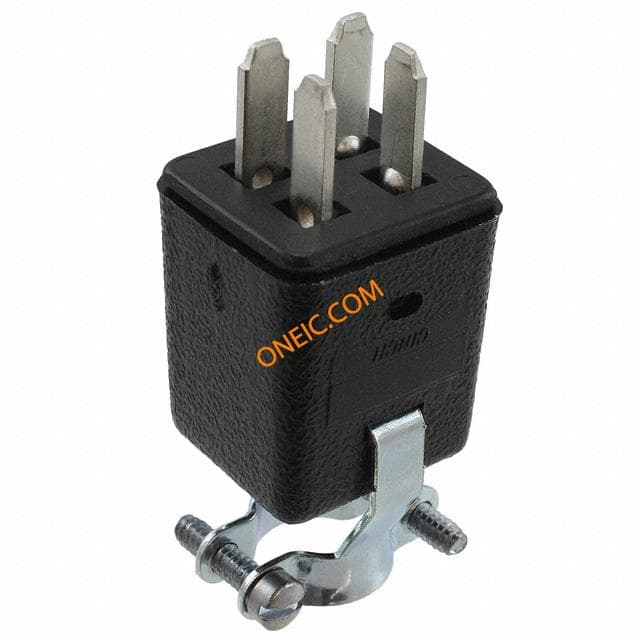

P-304H-CCT
