S-304-AB
| Manufacturer | |
| Description | Jones Plugs & Sockets 4C PNL MNT SOCKET CONN SOCKET 4POS CADMIUM SOLDER connector,jonessocketw/anglebrackets,soldereyelets,polarized,4contact |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Standards | ULRecognized,CSACertified | Approval Agency | CSA,UL |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 10A |
Mechanical
| Color | Black | Width | 0.750in. |
| Diameter | 0.152in.(Hole) | Material | Thermoplastic |
| Packaging | Bulk | Thickness | 0.438in. |
| Termination | Solder Eyelet(s) | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Socket, Jones |
| Contact Finish | Cadmium | Fastening Type | Push-Pull |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Length - Overall | 0.75" | Primary Material | Jones |
| Number of Contacts | 4 | Dielectric Material | Phenolic |
| Number of Positions | 4 | Material - Insulation | Phenol Formaldehyde (Phenolic) |
Product Info
| Type | CableSocket | Features | Flange |
| Manufacturer | 300Series | For Use With/Related Products | Foruseincable-to-cableandcable-to-panelapplications |
Environmental
| Operating Temperature | 105°C | ||
Documents & Media
Online Document
Similar Parts
P-304-LAB
Cinch
Jones Plugs & Sockets 4P PLUG SLDR EYELET W/O ANGLE BRACKET CONN PLUG 4POS CADMIUM SOLDER Cadmiumsolder,connectorplug4pos
$10.6080
Details
P-304-CCE
Cinch
Jones Plugs & Sockets 4P SERIES 300 PLUG W/ HOOD/CABLE CLAMP CONN PLUG 4POS CADMIUM SOLDER
$22.1000
Details
P-304-CCT
Cinch
Jones Plugs & Sockets 4C CBL MNT PLUG CONN PLUG 4POS CADMIUM SOLDER
$24.2760
Details

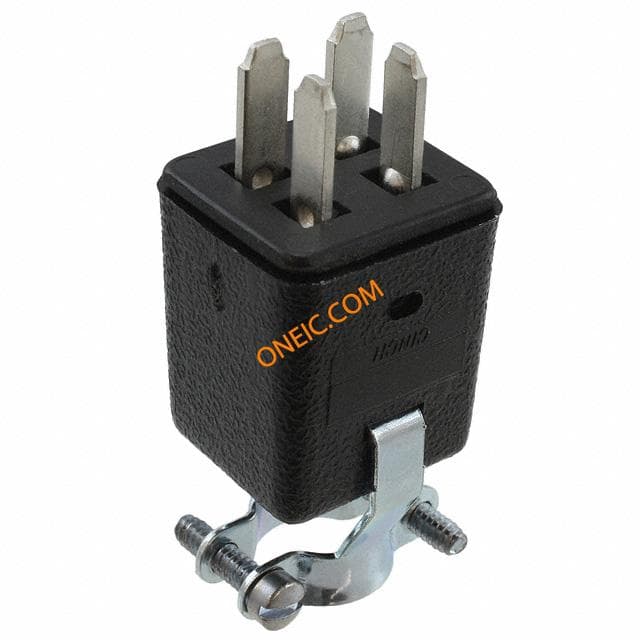

P-304H-CCT
