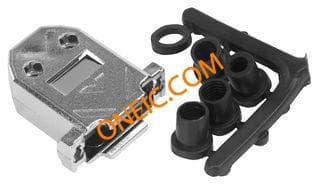

DCH-B-003

Manufacturer	Cinch Connectors
Description	D-Sub Backshells 25C 2PC PLSTC BCKS CONN HOOD DSUB 25POS MTL PLAST CONNECTOR ACCESSORY;D-SUB;METALIZED PLASTIC BACKSHELL W/GROMMETS;STD25/HD44 CONT TWO PIECE D SUB BACKSHELL, SIZE DB, ABS Hood;D-Sub;25Pos;StraightExit;D*HSeries;MetallizedPlastic;0.230-0.450In.CblDia
Category	Connector SolutionsD-Sub ConnectorsD-Sub Connectors

对参数有疑问？问 AI 助手

Business

Product Category	D-Sub Backshells	Standard Package	1,000
Factory Pack Quantity	1000

Compliance

RoHS

RoHS Compliant

Tariff No

00000000

Mechanical

Color	Silver	Weight	0.023
Plating	Nickel over Copper	Material	Plastic, Metallized
Shielding	Shielded	Cable Exit	180°
Cable Type	Round	Shell Size	B
Thread Size	4-40	Shell Plating	Nickel over Copper
Cable Diameter	0.230-0.450In.	Screw Material	Steel
Shell Material	Acrylonitrile Butadiene Styrene	Material - Body	:Metallized Plastic
Number of Positions	25	Plating - Thickness	Zinc
Shell Size - Insert	:DB	Supplier Device Package	:Straight
Backshell Material, Plating	MetalizedPlastic

Product Info

Series	:DCH	Features	Mating Screws 4-40
Hardware	Assembly Hardware, Grommets	Manufacturer	D*HSeries
Accessory Type	Two Piece Backshell

Documents & Media

PDF Document

DxH Series Accessories

PDF Document

1658168.pdf
