7-142
| Manufacturer | |
| Description | Barrier Terminal Blocks 7 TERMINALS .563 BARRIER BLOCK 7CIRC .563" Conn Barrier Strip 14 POS 14.3mm Screw ST Panel Mount 30A TERMINAL BLOCK, BARRIER, 7POS, 10AWG |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Barrier Terminal Blocks | Product Category | Barrier Terminal Blocks |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Material Flammability Rating | UL94 V-1 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 30A |
Mechanical
| Color | Black | Pitch | 0.563" (14.30mm) |
| Width | 1.312 in | Height | 0.625 in |
| Length | 4.906 in | Weight | 0.068 |
| Packaging | Bulk | Wire Gauge | 10 AWG |
| Mounting Type | Chassis, Panel | Connector Type | :Barrier Terminal Block |
| Contact Finish | Nickel | Mounting Style | Panel |
| Number of Rows | 2 | Top Termination | Screws |
| Contact Material | Brass | Housing Material | Phenolic |
| Material - Blade | Steel | Termination Style | Screw |
| Bottom Termination | Closed | Number of Contacts | 7 |
| Terminal Block Type | Barrier Block | Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Number of Wire Entries | 14 | Wire Gauge or Range - AWG | 10 |
| Wire Gauge or Range - mm2 | 10 | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Wire-to-Board | Series | :142 |
| Features | Flange | Barrier Type | 2 Wall (Dual) |
| Number of Circuits | 7 | ||
Environmental
| Operating Temperature | -55°F ~ 300°F | ||
Documents & Media
Online Document
PDF Document
PDF Document
Similar Parts
142J-2
Cinch
Terminal Block Tools & Accessories TYPE E JUMPER-142 TERMINAL BLOCK JUMPER TYPE E JUMPERS;USE WITH 142/542 Conn Jumper 2 POS ST Jumper;TermBlock;Barrier;Jumperforadjacentterminals;Series142
$2.1964
Details

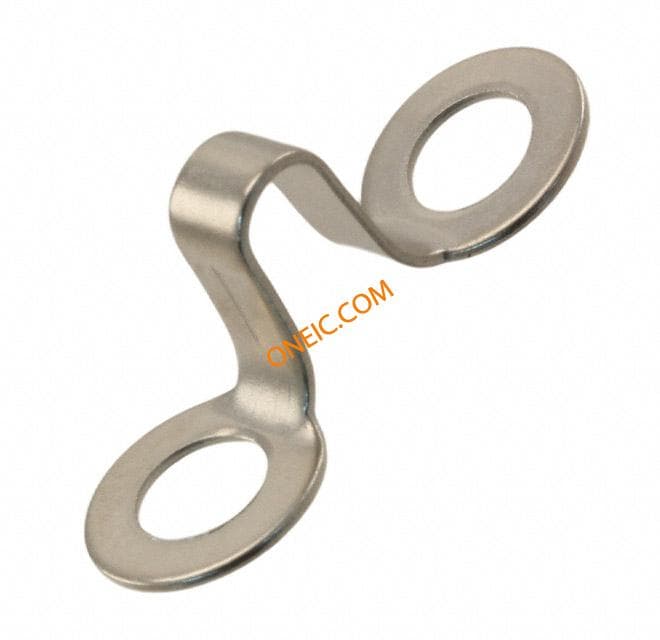

95B
Cinch
Terminal Block Tools & Accessories TYPE F JUMPER-142 Conn Jumper 2 POS ST TERMINAL BLOCK JUMPER TYPE F JUMPER, BRASS Jumper;TermBlock;Barrier;Jumperforadjacentterminals;Series142
$4.7736
Details

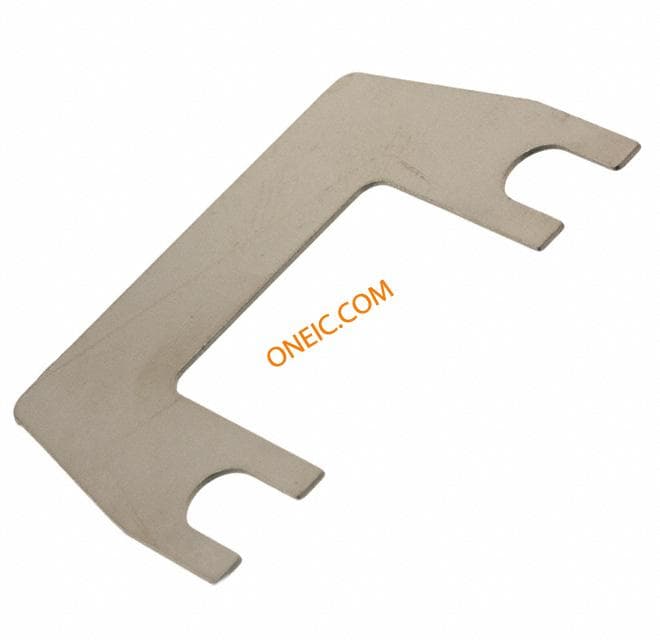

142J-1
