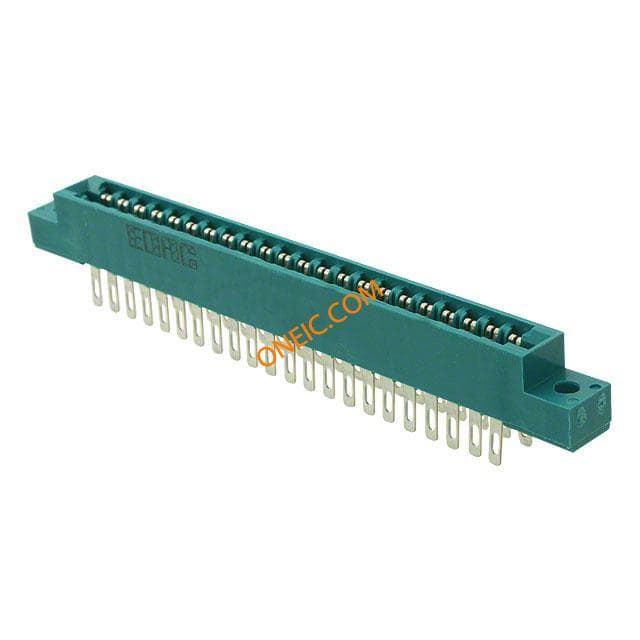

50-44A-30
| Manufacturer | |
| Description | Standard Card Edge Connectors 44C EDGE CONN CONN CARD EDGE connector;comm card edge;double readout;solder eyelets;.156 spacing;22 position CARD EDGE CONNECTOR, SOCKET, 44POS |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 5044A30 | Product Category | Standard Card Edge Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Read Out | Dual | ||
Mechanical
| Color | Green | Pitch | 0.156" (3.96mm) |
| Weight | 0.009 | Packaging | Bulk |
| Termination | Solder Eyelet(s) | Contact Type | Bifurcated Semi Bellows |
| Pitch - Post | :5.08mm | Mounting Type | Panel Mount |
| Card Thickness | 0.054" ~ 0.071" (1.37mm ~ 1.80mm) | Connector Type | :Card Edge |
| Contact Finish | Gold | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Number of Rows | 2 | Contact Material | Brass |
| Number of Contacts | :44 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 44 | Material - Insulation | Polyester, Glass Filled |
| Contact Finish Thickness | 10µin (0.25µm) | Number of Positions/Bay/Row | 22 |
Product Info
| Gender | Female | Series | :CARDCON |
| Card Type | Non Specified - Dual Edge | Product Type | With Flanges |
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
