4-141
| Manufacturer | |
| Description | Barrier Terminal Blocks 4 TERMINALS .438 BARRIER BLOCK 4CIRC .438" connector;barrier terminal block;double row;4 terminals;rated 20 amp;250 volts Conn Barrier Strip 8 POS 11.13mm Screw ST Panel Mount 20A TERMINAL BLOCK Conn;TermStrip;Barrier;4;.438Density;DblRow;14AWG;20A;250V |
| Category |
Business
| Product | Barrier Terminal Blocks | Product Category | Barrier Terminal Blocks |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-1 |
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 20A |
Mechanical
| Color | Black | Pitch | 0.438" (11.12mm) |
| Width | 1.125 in | Height | 0.5 in |
| Length | 2.5 in | Weight | 3.62 |
| Packaging | Bulk | Wire Gauge | 14 AWG |
| Mounting Type | Chassis, Panel | Connector Type | :Terminal Block, Barrier |
| Contact Finish | Nickel | Mounting Style | Panel |
| Number of Rows | 2 | Top Termination | Screws |
| Contact Material | Brass | Housing Material | Phenolic |
| Material - Blade | Steel | Termination Style | Screw |
| Bottom Termination | Closed | Number of Contacts | 4 |
| Number of Positions | :4 | Terminal Block Type | Barrier Block |
| Material - Insulation | Phenol Formaldehyde (Phenolic) | Number of Wire Entries | 8 |
| Wire Gauge or Range - AWG | 14 | Wire Gauge or Range - mm2 | 14 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Wire-to-Board | Series | :141 |
| Features | Flange | Barrier Type | 2 Wall (Dual) |
| Number of Circuits | 4 | ||
Environmental
| Operating Temperature | -55°F ~ 300°F | ||
Documents & Media
Similar Parts

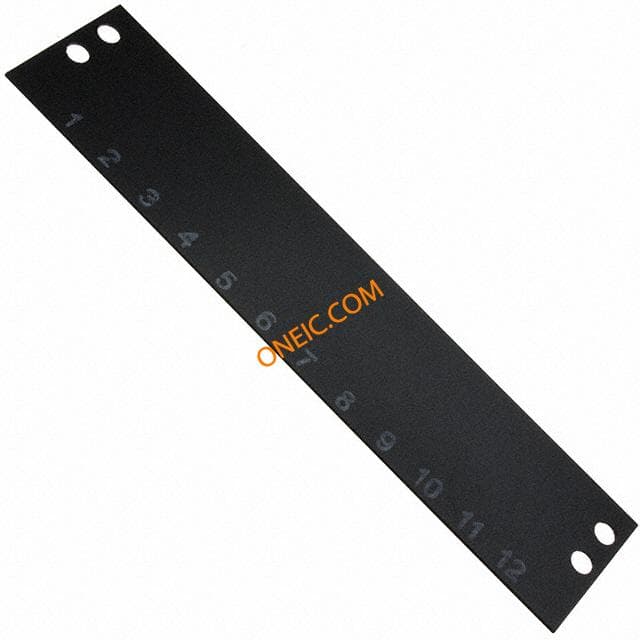

MS-12-140
