点击放大查看

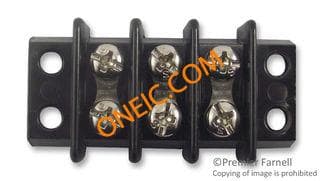

3-141
| Manufacturer | |
| Description | Barrier Terminal Blocks 3 TERMINALS .438 CONN BARRIER BLOCK .438" 3 CIRC connector;barrier terminal block;double row;3 terminals;rated 20 amp;250 volts Conn Barrier Strip 6 POS 11.13mm Screw ST Panel Mount 20A TERMINAL BLOCK, BARRIER, 3POS, 14AWG Conn;TermStrip;Barrier;3;.438Density;DblRow;14AWG;20A;250V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Barrier Terminal Blocks | Product Category | Barrier Terminal Blocks |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94 V-1 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 20A |
Mechanical
| Color | Black | Pitch | 0.438" (11.12mm) |
| Width | 1.125 in | Height | 0.5 in |
| Length | 1.75 in | Weight | 0.018 |
| Packaging | Bulk | Wire Gauge | 14 AWG |
| Mounting Type | Chassis, Panel | Connector Type | :Barrier Terminal Block |
| Contact Finish | Nickel | Mounting Style | Panel |
| Number of Rows | 2 | Top Termination | Screws |
| Contact Material | Brass | Housing Material | Phenolic |
| Material - Blade | Steel | Termination Style | Screw |
| Bottom Termination | Closed | Number of Contacts | 3 |
| Terminal Block Type | Barrier Block | Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Number of Wire Entries | 6 | Wire Gauge or Range - AWG | 14 |
| Wire Gauge or Range - mm2 | 14 | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Wire-to-Board | Series | :141 |
| Features | Flange | Barrier Type | 2 Wall (Dual) |
| Number of Circuits | 3 | ||
Environmental
| Operating Temperature | -55°F ~ 300°F | ||
Documents & Media
Online Document
PDF Document
PDF Document
