点击放大查看
10-142
| Manufacturer | |
| Description | Barrier Terminal Blocks 10 TERMINALS .563 CONN BARRIER BLOCK .563" 10 CIRC connector;barrier terminal block;double row;10 terminals;rated 30 amp;250 volts Conn Barrier Strip 20 POS 14.3mm Screw ST Panel Mount 30A TERMINAL BLOCK, BARRIER, 10POS, 10AWG Conn;TermStrip;Barrier;10;.563Density;DblRow;10AWG;30A;250V |
| Category |
Business
| Product | Barrier Terminal Blocks | Product Category | Barrier Terminal Blocks |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94 V-1 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 30A |
Mechanical
| Color | Black | Pitch | 0.563" (14.30mm) |
| Width | 1.312 in | Height | 0.625 in |
| Length | 6.594 in | Weight | 0.091 |
| Packaging | Bulk | Wire Gauge | 10 AWG |
| Weight (g): | 98.66667 | Mounting Type | Chassis, Panel |
| Connector Type | :Barrier Terminal Block | Contact Finish | Nickel |
| Mounting Style | Panel | Number of Rows | 2 |
| Top Termination | Screws | Contact Material | Brass |
| Housing Material | Phenolic | Material - Blade | Steel |
| Termination Style | Screw | Bottom Termination | Closed |
| Number of Contacts | 10 | Terminal Block Type | Barrier Block |
| Material - Insulation | Phenol Formaldehyde (Phenolic) | Number of Wire Entries | 20 |
| Wire Gauge or Range - AWG | 10 | Wire Gauge or Range - mm2 | 10 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Wire-to-Board | Series | :142 |
| Features | Flange | Barrier Type | 2 Wall (Dual) |
| Number of Circuits | 10 | ||
Environmental
| Operating Temperature | -55°F ~ 300°F | ||
Documents & Media
Similar Parts
QC-1
Cinch
Terminal Block Tools & Accessories QUICK CLAMP TERM 1P 22-12 AWG TERMINAL QUICK CLAMP 141SER
142J-2
Cinch
Terminal Block Tools & Accessories TYPE E JUMPER-142 TERMINAL BLOCK JUMPER TYPE E JUMPERS;USE WITH 142/542 Conn Jumper 2 POS ST Jumper;TermBlock;Barrier;Jumperforadjacentterminals;Series142
95B
Cinch
Terminal Block Tools & Accessories TYPE F JUMPER-142 Conn Jumper 2 POS ST TERMINAL BLOCK JUMPER TYPE F JUMPER, BRASS Jumper;TermBlock;Barrier;Jumperforadjacentterminals;Series142

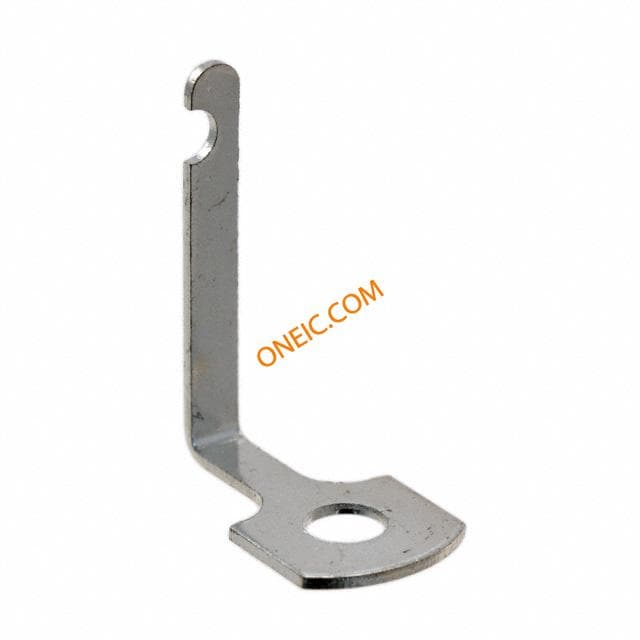

Y-142
