18602350
| Manufacturer | |
| Description | LED Replacement Lamps - Based LEDs Red 24AC/DC Bayonet Based LED BULB, BA9S, RED, T-10 |
| Category |
Business
| Product | Single Color Based LEDs | Standard Pack | 25 |
| Product Category | LED Replacement Lamps - Based LEDs | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85437090 |
Electrical
| Lamp Type | :T-10 | Beam Angle | :- |
| Voltage - Supply | :24V | Wavelength - Peak | :630nm |
| LED Forward Current | 15 mA | LED Forward Voltage | 24 V |
| Current Rating (Max) | :15mA | ||
Mechanical
| Color | :Red | Weight | 0 |
| Base Type | Miniature Bayonet | LED Color | :Red |
| Packaging | Bulk | Illumination Color | Red |
Environmental
| Lamp Life | :100000h | Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. |
| Luminous Flux @ Current/Temperature | 350 mcd | ||
Documents & Media
Similar Parts
081-0431-303
Dialight
Lamp Lenses MIN PANEL IND Cap For LED, Uni-Color Red CAP MINI PANEL INDICATOR RED Indicator;Red;0.64in.;0.68in.;For11/16in.mountinghole

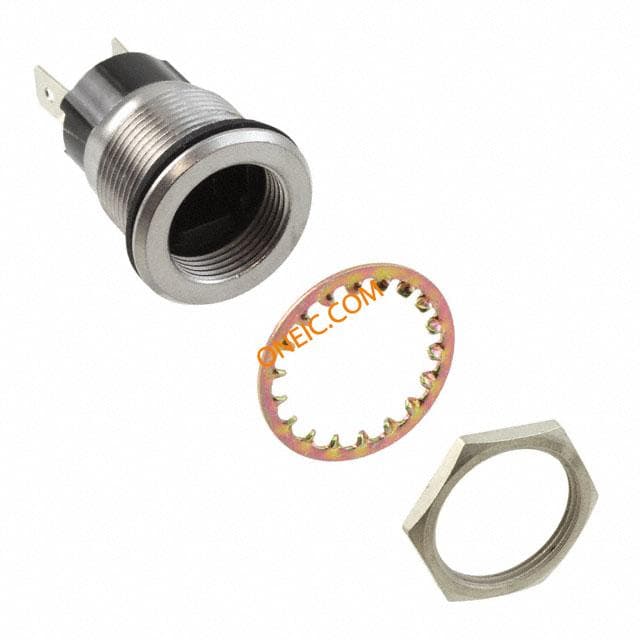

081-1059-01-303
