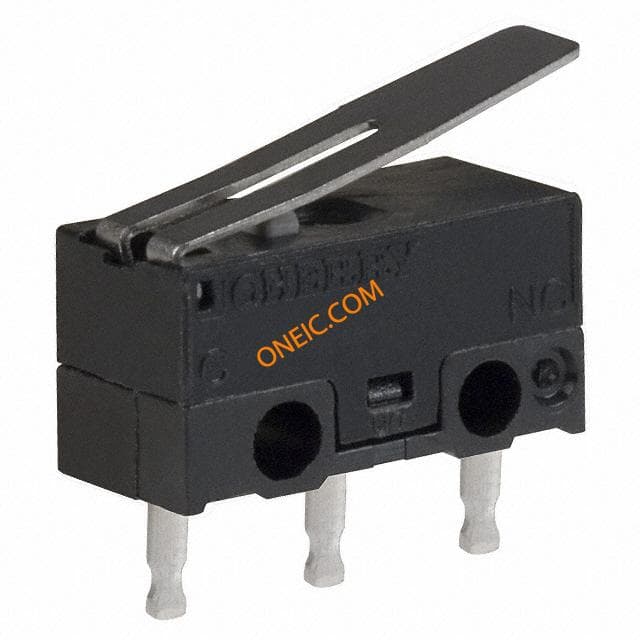

DG23B1LA
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Straight Lever PC Pins 0.05A 30VDC 0.44N Thru-Hole Switch Snap Action N.O./N.C. SPDT Straight Lever PC Pins 0.05A 30VDC 0.44N Thru-Hole Product Highlights: Small dimensions, just 0.504" x 0.228" x 0.256" (12.8 x 5.8 x 6.5mm) Depending on model, contact rating is suitable for low-switched currents and voltages for light-current applications with loads of up to 3 amps 125VAC Available with or without auxiliary actuator Can be fitted to circuit boards in upright position or horizontally with terminals on left or right Mechanical life: min. 1 x 106 operations (depending on model) Switch;LA;0.05A;30VDC;StandardRatio;45g;0.504in.;GoldFlash,Gold |
| Category |
Business
| Lead Time | 126 Days | Subcategory | Switch Snap Action |
Compliance
| RoHS | RoHS Compliant Part | EU RoHS | Compliant |
| Standards | UL1054 | Material Flammability Rating | UL9V-0 |
Electrical
| Operation | SnapAction | Voltage Rating | 30VDC |
| Number of Poles | 1 | Switch Function | N.O./N.C. |
| Current Rating (Max) | 0.05 A | Switch Function/Rating | N.O./N.C. |
| Voltage - DC Spark Over (Nom) | 30V VDC | ||
Mechanical
| Color | Gray | Depth | 5.8 mm |
| Height | 8.31 mm | Body Finish | Subminiature |
| Termination | PCBPins | Contact Form | SPDT |
| Actuator Type | FlatLever | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Mounting Style | Through Hole |
| Shell Material | PBT(Cover) | Operating Force | 0.44 N |
| Contact Material | Gold Flash | Length - Overall | 14 mm |
| Actuator Material | Stainless Steel/Polybutylene Tere... | Actuator Style/Size | Straight Lever |
| Switch Actuation Level | SPDT | Material - Housing & Prism | Polyphenylene Sulphide/N/A |
Product Info
| Type | Basic | DELETED | Compliant |
| Manufacturer | DGSeries | Electrical Life | 200000 |
Environmental
| Mechanical Life | 1000000 | Operating Temperature | -25C to 85C |
| Operating Temperature - Junction | 85C | ||
