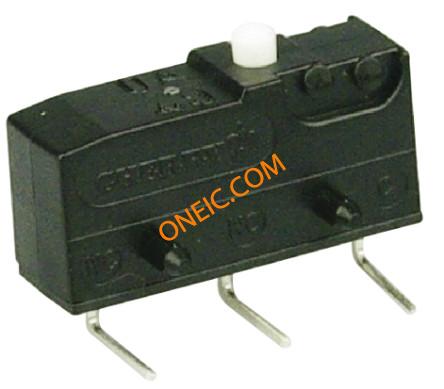

DB1C-D3AA
| Manufacturer | |
| Description | SPDT-NO/NC Button Microswitch, 6 A @ 250 V ac MICROSWITCH, SPDT, PLUNGER ACTUATOR |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Tariff No | 85365080 | Approval Agency | :ENEC, KEMA-KEUR |
| Material Flammability Rating | :UL 94V- O | ||
Electrical
| Voltage - Core | :250V | Number of Poles | :1 |
| Differential Travel | :0.10mm | Current - Modulation | :5A |
| Current - Max/Contact | :6A | Switch Function/Rating | :Off-On |
| Contact Rating (Current) | 6 A @ 250 V ac | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :80V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | :6.5mm | Width | :20mm |
| Length | :9mm | Weight | 0.0018 |
| Material | :PET | Pretravel | :1.0mm |
| Overtravel | :0.6mm | Actuator Type | Button |
| Terminal Type | Through Hole | Package / Case | :PET (Polyethylene Terephthalate) |
| Operating Force | 1.47 N | Contact Material | Gold; Silver Alloy |
| Mounting Feature | :9.5mm | Actuator Style/Size | :Plunger |
| Number of Positions | :6000 | Switch Actuation Level | :Snap Action |
| Contact Layout, Typical | SPDT-NO/NC | ||
Product Info
| Series | :DP | ||
Environmental
| Mechanical Life | 15000000Operations | NEMA Frame Size | :IP50 |
| Operating Temperature | +120°C | ||
