D42LR1AA
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Button Quick Connect 3A 250VAC 250VDC 74.57VA 0.15N Screw Mount MICRO SWITCH, BUTTON, SPDT, 3A, 250V Switch,Miniature,3Amps |
| Category |
Business
| Lead Time | 126 Days | Subcategory | Switch Snap Action |
Compliance
| EU RoHS | Compliant | Tariff No | 85365005 |
Electrical
| Operation | SnapAction | Power - Rated | 74.57@UL |
| Voltage Rating | 125VAC | Current Rating (Max) | 3Amps |
| Current - Max/Contact | :3A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | N.O./N.C. | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 10.31 | Weight | 0.005 |
| Body Finish | Miniature | Actuator Type | Plunger |
| Mounting Type | Screw Mount | Terminal Type | Quick Connect |
| Mounting Style | Panel | Operating Force | :45gf |
| Contact Material | Silver Alloy | Length - Overall | 37.9 |
| Actuator Material | Thermoplastic Acetal | Actuator Style/Size | Button |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
Product Info
| Type | Basic | Series | :D4 |
| Electrical Life | 50000@EN | ||
Environmental
| Operating Temperature | 85 | ||
Documents & Media
Similar Parts

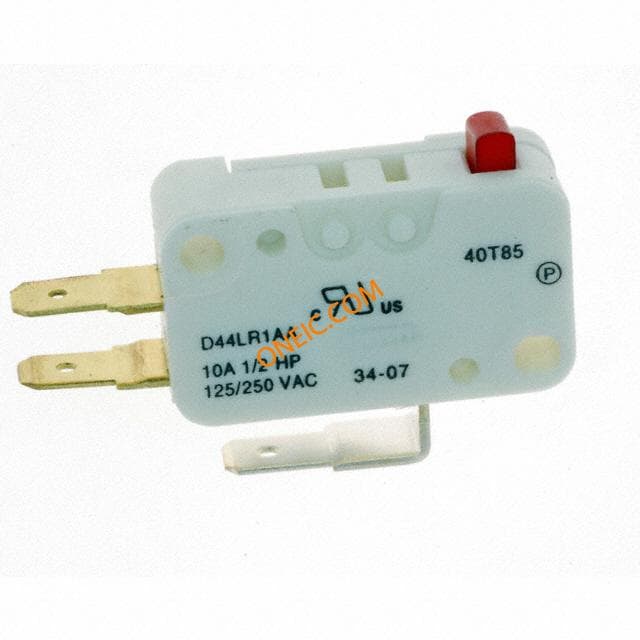

D44L-R1AA
