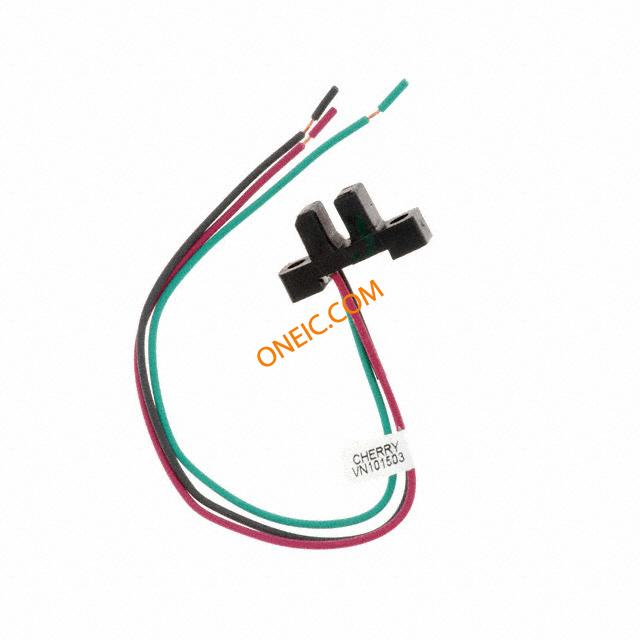

VN101503
| Manufacturer | |
| Description | Proximity Sensors VANE W/ 6 LEADS Digital Vane Sensor 3-Pin SENSOR HALL EFF MOLDED VANE 3PIN Sensor; Solid State Magnetic Proximity; 4.5-24 VDC; 3 Wire Sink Output Digital Vane Sensor 3-Pin Product Highlights: PROXIMITY SENSOR Sensor,SolidStateMagneticProximity,4.5-24VDC,3WireSinkOutput |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH712 |
| Subcategory | Specialized Sensor | Product Category | Proximity Sensors |
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 90318038 | ||
Electrical
| Output | NPN | Output Type | Digital |
| Sensor Type | :Magnetic | Output Signal | :NPN |
| Current - Output | 6 mA | Voltage - Supply | 4.5 V ~ 24 V |
| Current - Switching | 25mA | Voltage - Switching DC | 400mV |

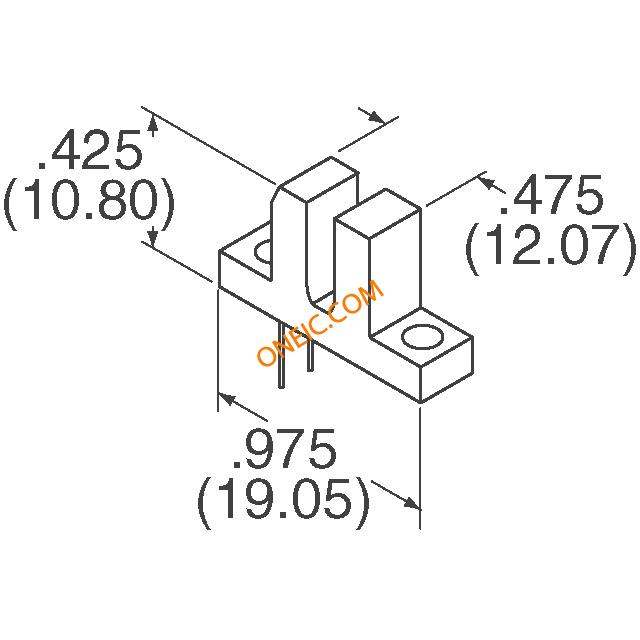

Mechanical
| Width | 6.35 | Weight | 0.005 |
| Lead Style | Cable | Termination | 3-WireCable |
| Mounting Type | Screw | Mounting Style | Screw |
| Package / Case | Slotted Body | Length - Overall | 24.77 |
| Primary Material | Photoelectric | Actuator Material | Ferrous Metals, Gear Tooth |
| Termination Style | Wire Leads | Number of Positions | 3 |
| Shell Size - Insert | 10.8 | ||
Product Info
| Type | Hall Effect | Series | VN1015 |
| Function | * | Technology | HallEffect |
| Manufacturer | VN1015 | Must Release | * |
| Sensing Method | Magnetic | Printed Circuit Board | 3 |
| Leaded Process Compatible | :Yes | ||
Environmental
| Must Operate | * | Temperature - Test | :No |
| Operating Temperature | - 40 C | ||
