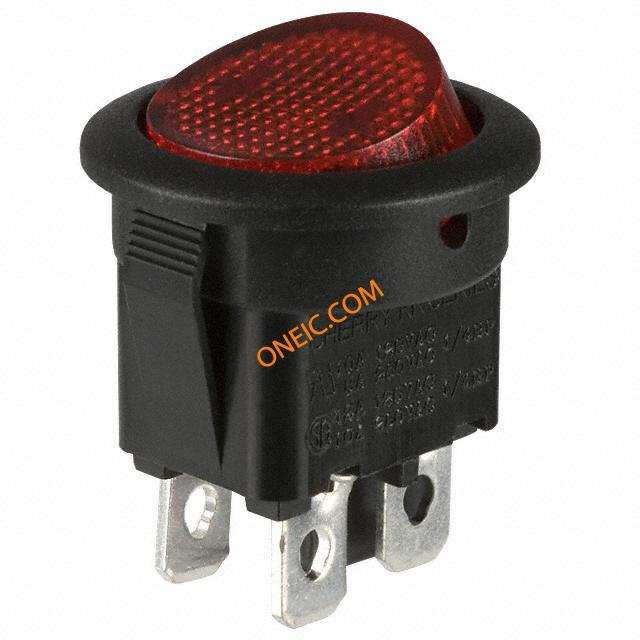

RRA32H3BBRLN
| Manufacturer | |
| Description | Rocker Switches & Paddle Switches DPST ON-OFF 10A Red Lighted .187 QC Switch Rocker ON OFF DPST Quick Connect Round Rocker 10A 250VAC 186.42VA 100000Cycles SWITCH ROCKER DPST 10A 125V Switch; Rocker; DPST; 10 A @ 125 VAC; 8 A @ 250 VAC; 125/250; On-Off/Lighted Rocker Switches DPST ON-OFF 10A Red Lighted .187 QC Switch Rocker ON OFF DPST Quick Connect Round Rocker 10A 250VAC 186.42VA 100000Cycles Product Highlights: Single-pole and double-pole configurations Lighted and non-lighted options Available in a wide variety of colors High current switching in a compact round package Self-locking tabs to fit industry-standard panel cut-outs SWITCH, ROCKER, DPST, 10A, 250V, RED Switch,Rocker;DPST;10A;125V;On-Off;Redlit(125V)act.;QC;UL,CSA |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CH871 | Product Category | Rocker Switches & Paddle Switches |
| Standard Package | 400 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365005 | ||
Electrical
| Circuit | DPST | Operation | On-Off |
| Power - Rated | 186.42@(cULus) | Voltage Rating | 250 V |
| Number of Poles | 2 | Switch Function | ON - NONE - OFF |
| Contact Resistance | 0.020Ohms(Max.) | Dielectric Strength | 1000VAC |
| Current Rating (Max) | 10 A | Current - Max/Contact | :10A |
| Insulation Resistance | 10^8Ohms(Min.)@500VDC | Voltage - Input (Min) | 250@(cULus/VDE) |
| Switch Function/Rating | ON OFF | Contact Rating @ Voltage | 10 A at 125 V |
| Illumination Voltage (Nominal) | 125 VAC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Color | Black | Depth | 23 |
| Height | 28.3 | Weight | 0.005 |
| Packaging | Bulk | Termination | QCTabs |
| Contact Form | DPST | Actuator Type | Round |
| Mounting Type | Panel Mount | Terminal Type | Quick Connect |
| Contact Finish | Copper Alloy | Mounting Style | Panel |
| Contact Material | Silver Alloy | Housing Material | Nylon |
| Length - Overall | 23 | Actuator Material | Nylon 66 |
| Termination Style | Quick Connect | Illumination Color | Red |
| Actuator Style/Size | Round Rocker | Number of Positions | 2 |
| Color - Actuator/Cap | Red | Mounting Hole Diameter | 0.787In. |
| Switch Actuation Level | DPST | Contact Layout, Typical | :DPST |
| Panel Cutout Dimensions | Circular - 20.00mm Dia | Illumination Type, Color | Neon Lamp |
| Material - Housing & Prism | Nylon 66/N/A | 1st Connector Mounting Type | :Panel |
Product Info
| Type | Rocker | Series | :RR |
| Features | HighCurrentSwitching,Lighted | Illumination | Illuminated |
| Manufacturer | RRSeries | Electrical Life | 6,000 Cycles |
| Actuator Marking | No Marking | ||
Environmental
| Rated Life | 100000Operations(Min.) | Mechanical Life | 100,000 Cycles |
| Operational Life | 10000Operations(Min.)VDEApproved,6000Operations(Min.)ULListed | Operating Temperature | - 20 C to + 85 C |
| Operating Temperature - Junction | 85°C | ||
