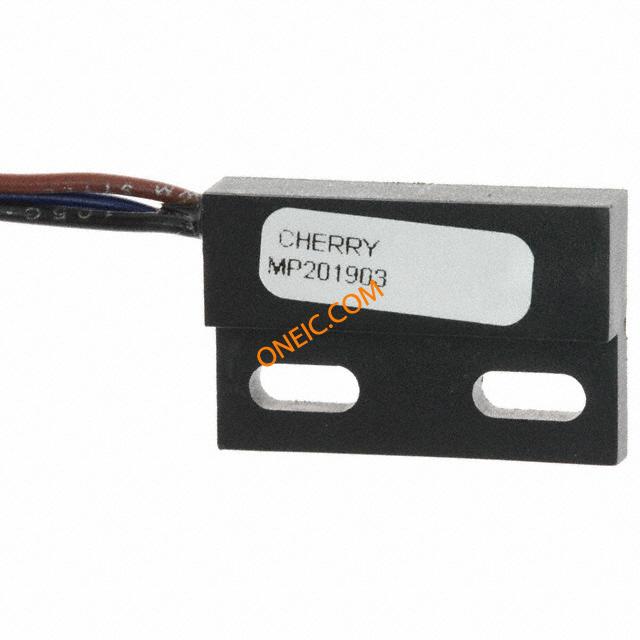

MP201903
| Manufacturer | |
| Description | Proximity Sensors SPDT-C/O FLANGE MNT Proximity Sensor Magnetic 2-Pin SWITCH MAGN REED SPDT 3W Sensor; Proximity; 100 VDC (Max.); 0.2 A (Max.); 3 W (Max.); CO; SPDT; 0.2 Ohms Proximity Sensor Magnetic 2-Pin Product Highlights: Sensor,Proximity;100VDC(Max.);0.2A(Max.);3W(Max.);CO;SPDT;0.2Ohms |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH409 |
| Subcategory | Proximity Sensor | Product Category | Proximity Sensors |
| Standard Package | 1,000 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed | ||
Electrical
| Output | SPDT-CO | Output Type | SPDT |
| Power - Rated | 3W(Max.) | Current - Output | 200 mA |
| Voltage - Supply | 100V | Current - Switching | 0.2A |
| Current Rating (Max) | 0.2A(Max.) | Voltage - Switching DC | 100VDC |
| Resistance - Initial (Ri) (Min) | 0.2Ohms | ||
Mechanical

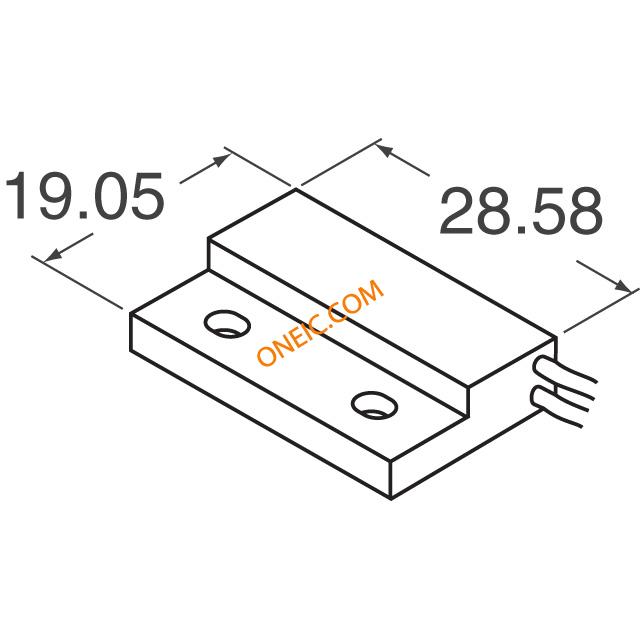

| Width | 0.25 | Height | 0.75in. |
| Length | 1.125in. | Lead Style | Cable |
| Wire Gauge | 24AWG | Termination | LeadWire |
| Mounting Type | Screw | Mounting Style | Screw |
| Package / Case | * | Length - Overall | 28.58 |
| Primary Material | Proximity | Actuator Material | Magnet |
| Termination Style | Wire Leads | Number of Positions | 2 |
| Shell Size - Insert | 6.35 | ||
Product Info
| Type | Magnetic | Series | MP2019 |
| Function | Switch | Technology | Reed |
| Manufacturer | MP2019 | Must Release | 22.86mm |
| Sensing Method | Magnetic | Measuring Range | 22.86mm |
| Module/Board Type | Module | Printed Circuit Board | 2 |
Environmental
| Must Operate | 10.16mm | Operating Temperature | - 40 C |
