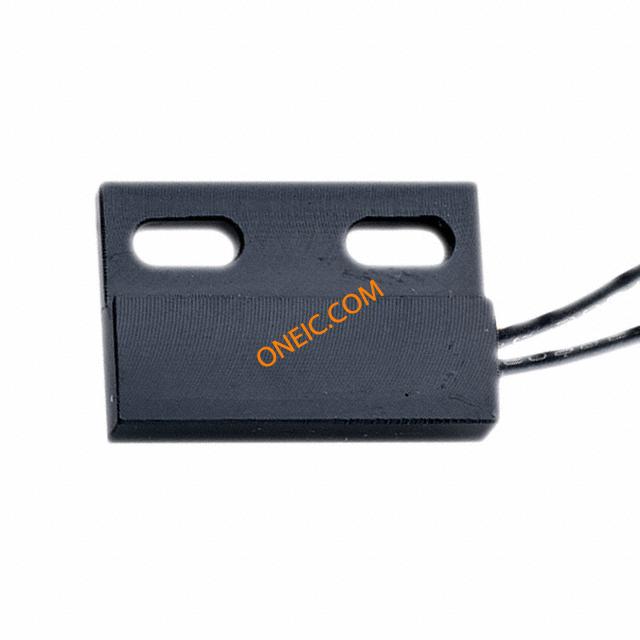

MP201902
| Manufacturer | |
| Description | Proximity Sensors SPST-N/C FLANGE MNT Proximity Sensor Magnetic 30V 30V 2-Pin SWITCH MAGN REED SPST 3W Sensor; 100 VDC (Max.) (Switching); 0.2 A (Max.) (Switching); -40 to 105 degC Proximity Sensor Magnetic 30V 30V 2-Pin Product Highlights: Sensor;100VDC(Max.)(Switching);0.2A(Max.)(Switching);-40to105degC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH408 |
| Subcategory | Proximity Sensor | Product Category | Proximity Sensors |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output | SPST-NC | Output Type | SPST-NC |
| Current - Output | 200 mA | Voltage - Supply | 100V |
| Current - Switching | 0.2A | Voltage - Supply (Min) | 30 |
| Voltage - Switching DC | 100VDC | Voltage - Supply (Vcc/Vdd) | 30(Max) |
Mechanical
| Width | 19.1 | Lead Style | Cable |
| Termination | LeadWire | Mounting Type | Screw |
| Mounting Style | Screw | Package / Case | * |
| Length - Overall | 28.58 | Primary Material | Proximity |
| Actuator Material | Magnet | Termination Style | Wire Leads |
| Number of Positions | 2 | Shell Size - Insert | 6.35 |
Product Info
| Type | Magnetic | Series | MP2019 |
| Function | Switch | Technology | Reed |
| Manufacturer | MP2019 | Must Release | 22.86mm |
| Sensing Method | Magnetic | Measuring Range | 22.86mm |
| Module/Board Type | Module | Printed Circuit Board | 2 |
Environmental
| Must Operate | 10.16mm | Operating Temperature | - 40 C |
