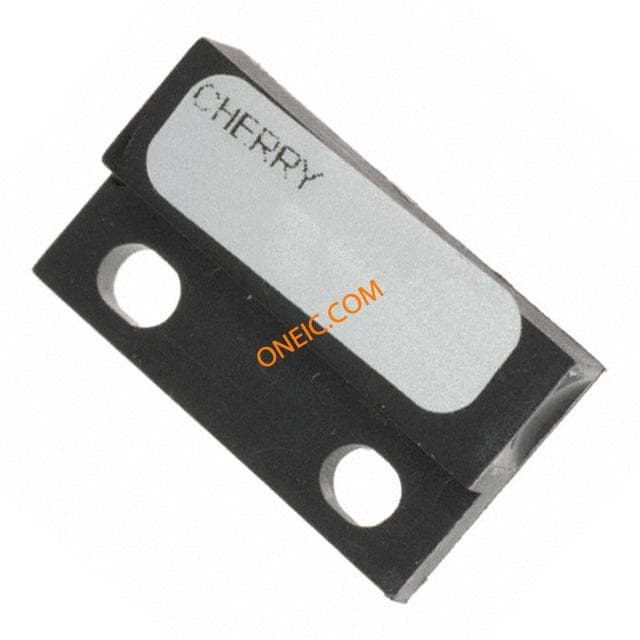

MP201802
| Manufacturer | |
| Description | Proximity Sensors SPST-N/C FLANGE MNT MAGNETIC REED SENSOR SWITCH MAGN REED SPST 3W 175V Sensor; 100 VDC (Max.) (Switching); 0.2 A (Max.) (Switching); -40 to 105 degC MAGNETIC REED SENSOR Product Highlights:Hermetically Sealed for Long LifeZero Power ConsumptionResistant to Moisture and DirtStandard Magnetic Actuator is Available in the Same Housing Cherry Part Number AS201801 PROXIMITY SENSOR Sensor;100VDC(Max.)(Switching);0.2A(Max.)(Switching);-40to105degC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH406 |
| Subcategory | Sensor Misc | Product Category | Proximity Sensors |
| Standard Package | 1,000 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 90318038 | ||
Electrical
| Output | SPST-NC | Output Type | SPST-NC |
| Sensing Range | :17.8mm | Switching Mode | NC |
| Current - Output | 200 mA | Voltage - Supply | 100V |
| Current - Switching | 0.2A | Voltage - Switching DC | 100VDC |
Mechanical
| Weight | 0 | Lead Style | Cable |
| Termination | 2-WireCable | Mounting Style | Screw |
| Package / Case | * | Primary Material | Proximity |
| Actuator Material | Magnet | Termination Style | Wire Leads |
| Number of Positions | 2 | ||
Product Info
| Type | Magnetic | Series | MP2018 |
| Function | Switch | Technology | Reed |
| Manufacturer | MP2018 | Must Release | 17.80mm |
| Sensing Method | Magnetic | Measuring Range | 17.8mm |
| Module/Board Type | Module | Leaded Process Compatible | :No |
Environmental
| Must Operate | 6.35mm | Temperature - Test | :No |
| Operating Temperature | - 40 C | ||
