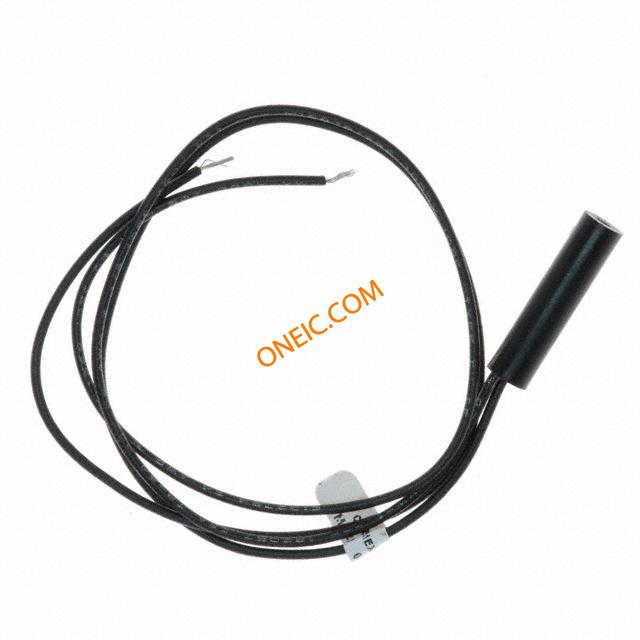

MP201702
| Manufacturer | |
| Description | Proximity Sensors SPST-N/C FORM B Magnetic Sensor 3-Pin SWITCH MAGN REED SPST 3W Sensor; 100 VDC (Max.) (Switching); 0.2 A (Max.) (Switching); Plastic Magnetic Sensor 3-Pin Product Highlights: Sensor;100VDC(Max.)(Switching);0.2A(Max.)(Switching);Plastic |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH403 |
| Subcategory | Specialized Sensor | Product Category | Proximity Sensors |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output | SPST-NC | Output Type | SPST-NC |
| Current - Output | 200 mA | Voltage - Supply | 100V |
| Current - Switching | 0.2A | Voltage - Switching DC | 100VDC |
Mechanical
| Body Finish | Cylindrical | Termination | 2-WireCable |
| Package / Case | * | Housing Material | Plastic |

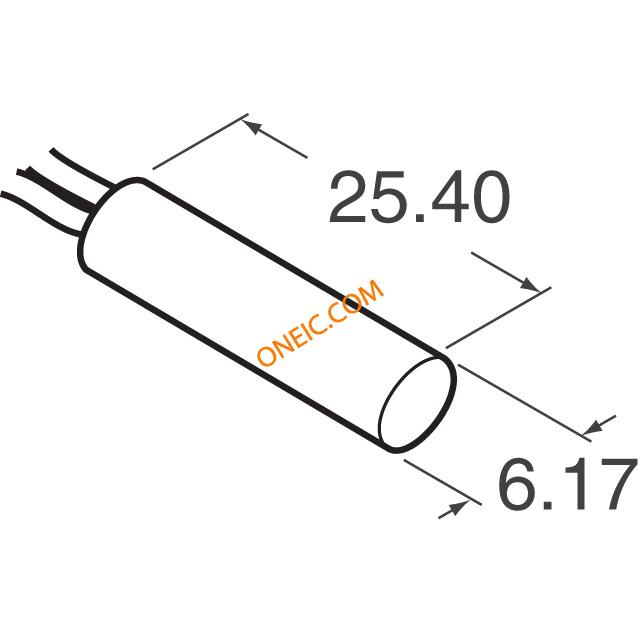

| Length - Overall | 25.4 | Primary Material | Proximity |
| Actuator Material | Magnet | Termination Style | Wire Leads |
| Number of Positions | 3 | ||
Product Info
| Type | Reed Switch | Series | MP2017 |
| Function | Switch | Technology | Reed |
| Manufacturer | MP2017 | Must Release | 12.70mm |
| Sensing Method | Magnetic | Measuring Range | 12.7mm |
| Printed Circuit Board | 3 | ||
Environmental
| Must Operate | 3.81mm | Operating Temperature | - 40 C |
