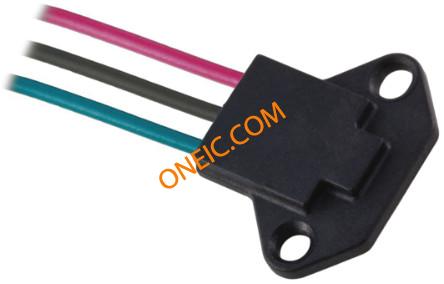

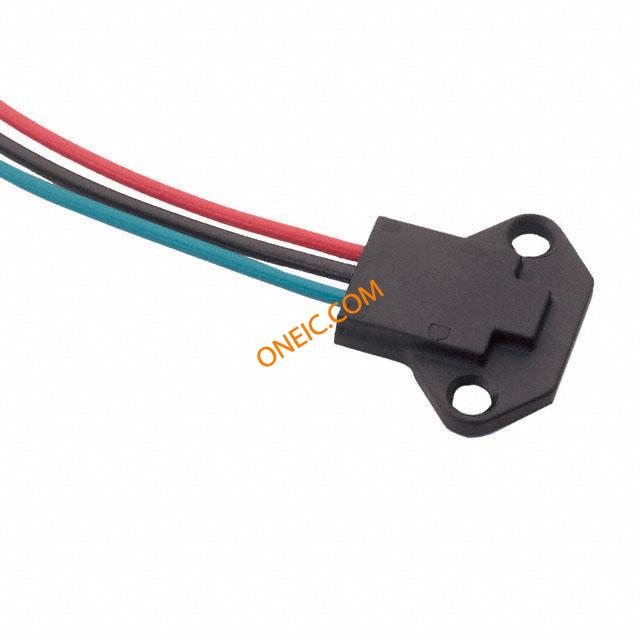

MP101401
| Manufacturer | |
| Description | Proximity Sensors LOW-PROFILE 12 LEAD Proximity Sensor Magnetic 4.5V to 24V 3-Pin SENSOR MAGNETIC PROXIMITY NPN Hall Effect Sensor, 20mA, 4.5 to 24V dc, IP68 Sensor; Digital Hall Effect; Proximity; Low Profile; 3-Wire Sink; Flange HHousin MAGNETIC SENSOR Sensor,DigitalHallEffect,Proximity,LowProfile,3-WireSink,FlangeHHousin Cherry NPN 霍尔效应传感器 switching current 20 mA supply voltage 4.5 → 18 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 76 Days | Subcategory | Proximity Sensor |
| Product Category | Proximity Sensors | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 90318038 | Protection Features | Yes |
Electrical
| Output | Voltage/Current | Interface | :- |
| Output Type | NPN | Voltage Rating | 24V |
| Voltage - Supply | 4.5 → 24 V dc | Current - Switching | 20 mA |
| Voltage - Supply (Min) | 24 | Voltage - Switching DC | 400mV |
| Voltage - Supply (Vcc/Vdd) | 4.5 to 24 | ||
Mechanical
| Depth | 3.3mm | Width | 21.72mm |
| Length | 17.27mm | Weight | 0 |
| Lead Style | Cable | Termination | 3-WireCable |
| Mounting Type | Screw | Terminal Type | Wire Lead |
| Mounting Style | Flange Mount | Length - Overall | 21.72 |
| Primary Material | Proximity | Number of Positions | 3 |
| Shell Size - Insert | 17.27 | Supplier Device Package | Block |
Product Info
| Type | Magnetic | Series | * |
| Function | Proximity | Technology | HallEffect |
| Manufacturer | MP1014 | Sensing Method | Magnetic |
| Module/Board Type | Module | Printed Circuit Board | 3 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IPX5 |
| Operating Temperature | +85°C | ||
