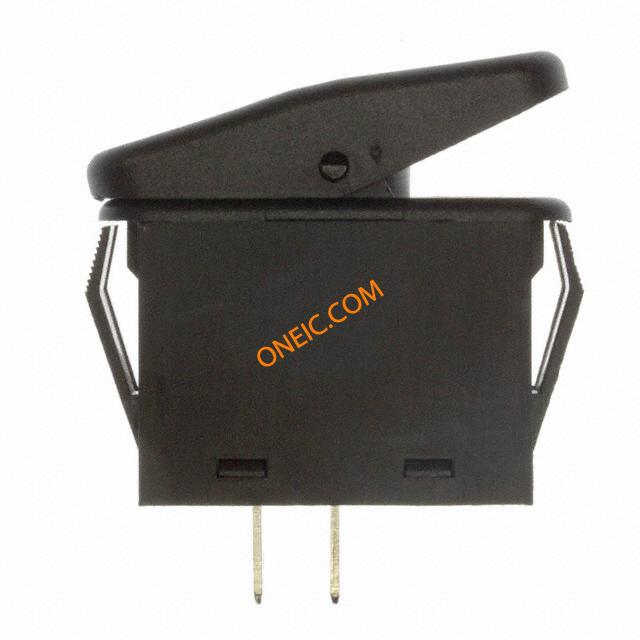

KTG2ANB1BBDNNN
| Manufacturer | |
| Description | Rocker Switches & Paddle Switches SPST - On-Off 20A 125VAC 1/3HP SWITCH ROCKER SPST 20A 125V IP56 Black SPST Rocker Switch, On-Off, 21 A @ 14 V dc Rocker Switches SPST - On-Off 20A 125VAC 1/3HP Switch Rocker ON OFF SPST Quick Connect Rocker 21A 250VAC 250VDC 559.27VA 100000Cycle Switch Rocker ON OFF SPST Quick Connect Rocker 21A 250VAC 250VDC 559.27VA 100000Cycle Product Highlights: Enclosed switch complying to IP56 Lighted and non-lighted versions Snap-in mounting Variety of actuator and lens color options Mechanical life: 100,000 cycles DC electrical life: 25,000 cycles Switch,Rocker,Waterproof,20A,Blk,QC,Non-Illuminated |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CH956 | Product Category | Rocker Switches & Paddle Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPST | Voltage Rating | 250 V |
| Switch Function | ON - OFF | Contact Resistance | 50mΩ |
| Current Rating (Max) | 21 A | Switch Function/Rating | On-Off |
| Contact Rating (Current) | 21 A@ 14 V dc | ||
Mechanical
| Color | Black | Packaging | Bulk |
| Contact Form | SP | Actuator Type | Rocker |
| Mounting Type | Panel Mount, Snap-In | Terminal Type | Tab |
| Actuator Color | Black | Contact Finish | Silver |
| Mounting Style | Through Hole | Contact Material | Silver Plated Copper Alloy |

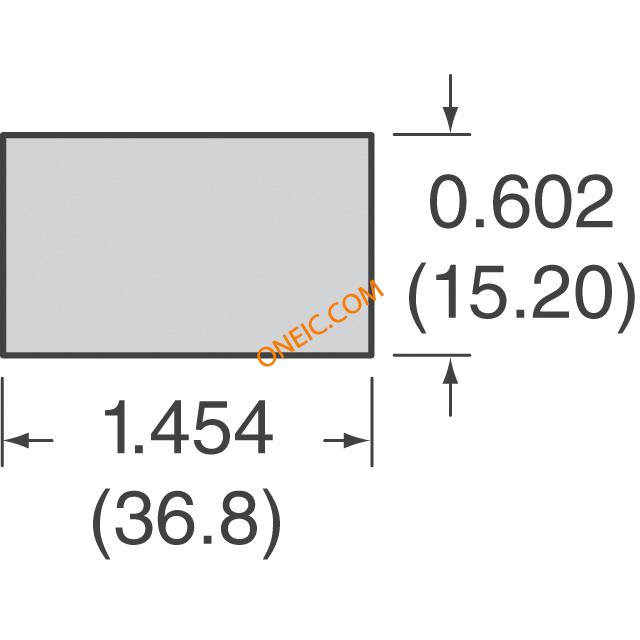

| Termination Style | Solder Lug | Panel Cutout Shape | 36.8 x 15.2mm |
| Actuator Style/Size | Convex (Reverse V) | Color - Actuator/Cap | Black |
| Contact Layout, Typical | SPST | Panel Cutout Dimensions | Rectangular - 36.80mm x 15.20mm |
| Material - Housing & Prism | PA 6.6 | ||
Product Info
| Illumination | Not Illuminated | Electrical Life | 6,000 Cycles |
| Actuator Marking | O - | ||
Environmental
| Seal Rating | IP56 | Mechanical Life | 100,000 Cycles |
| Ingress Protection | IP56 - Dust Protected, Water Resistant | Operating Temperature | -20°C ~ 85°C |
