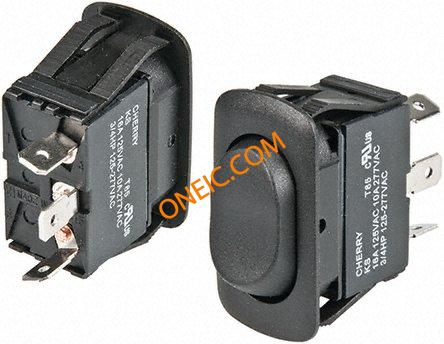

KSF2BNB1BBB
| Manufacturer | |
| Description | Rocker Switches & Paddle Switches SPDT - On-On 16A 125VAC SWITCH ROCKER SPDT 16A 125V IP56 Black SPDT Rocker Switch, On-On, 21 A @ 14 V dc Rocker Switches SPDT - On-On 16A 125VAC Switch,Rocker,Waterproof,16A,On-On,QC,Blk,Non-Illuminated |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CH948 | Product Category | Rocker Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-On | Contact Resistance | 50mΩ |
| Current Rating (Max) | 16A (AC), 21A (DC) | Switch Function/Rating | On-On |
| Contact Rating (Current) | 21 A@ 14 V dc | ||
Mechanical
| Color | Black | Packaging | Bulk |
| Contact Form | SPDT | Actuator Type | Rocker |
| Mounting Type | Panel Mount, Snap-In | Terminal Type | Tab |
| Actuator Color | Black | Contact Finish | Silver |
| Mounting Style | Through Hole | Contact Material | Silver Plated Copper Alloy |

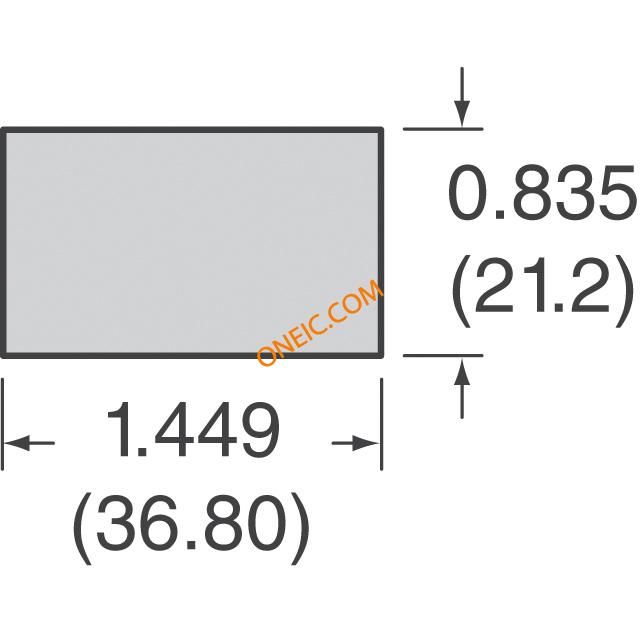

| Termination Style | Quick Connect - 0.250" (6.3mm) | Panel Cutout Shape | 36.8 x 21.2mm |
| Actuator Style/Size | Concave (Curved) | Color - Actuator/Cap | Black |
| Contact Layout, Typical | SPDT | Panel Cutout Dimensions | Rectangular - 36.60mm x 21.20mm |
| Material - Housing & Prism | PA 6.6 | ||
Product Info
| Electrical Life | 6,000 Cycles | Actuator Marking | No Marking |
Environmental
| Seal Rating | IP56 | Mechanical Life | 100,000 Cycles |
| Ingress Protection | IP56 - Dust Protected, Water Resistant | Operating Temperature | -20°C ~ 85°C |
