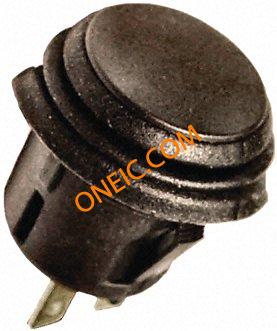

KFB3ANA1BBB
| Manufacturer | |
| Description | Rocker Switches & Paddle Switches DPST - On-Off 10A 125VAC SWITCH PUSH DPST 10A 125V Switch p/button,DPST on-off,black,10A SWITCH, ROCKER, DPST, 10A, 250V, BLACK Switch,Rocker,Waterproof,On-Off,10A,Blk,QC,Non-Illuminated |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CH942 | Standard Package | 100 |
Compliance
| RoHS | Compliant | Standards | IP65,UL1054 |
| Tariff No | 85365007 | ||
Electrical
| Circuit | DPST | Voltage Rating | 125V |
| Number of Poles | Doublepole | Switch Function | On-Off |
| Dielectric Strength | 1500VACfor1minute | Current Rating (Max) | 10A (AC/DC) |
| Current - Max/Contact | :10A | Switch Function/Rating | Maintained On-Off |
| Contact Rating (Current) | 10 A @ 28 V dc, 6 A @ 250 V ac | Voltage - Supply (Vcc/Vdd) | :28V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0.005 | Packaging | Bulk |
| Case Color | Black | Termination | QCTabs |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Snap-In |
| Terminal Type | Tab | Actuator Color | Black |
| Mounting Style | Panel | Contact Material | Silver Alloy |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Panel Cutout Shape | 20.2mm |
| Number of Positions | On-Off | Color - Actuator/Cap | Black |
| Mounting Hole Diameter | 0.795In. | Contact Layout, Typical | DPST |
| Panel Cutout Dimensions | Circular - 20.20mm Dia | ||
Product Info
| Type | Standard | Features | Silveralloycontacts,Siliconerubberwaterproofing |
| Electrical Life | 6,000 Cycles | ||
Environmental
| Seal Rating | IP65 | Mechanical Life | 100,000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Temperature Rating | -25degCto85degC |
| Operating Temperature | -25°C ~ 85°C | ||
