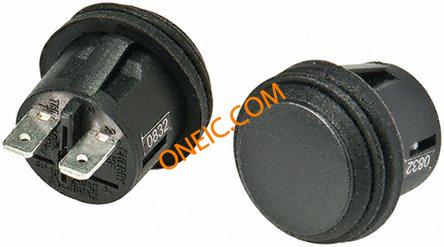

KFB2ANA1BBB
| Manufacturer | |
| Description | Rocker Switches & Paddle Switches SPST - On-Off 10A 125VAC SWITCH PUSH SPST 10A 125V Switch p/button,SPST on-off,black,10A Rocker Switches SPST - On-Off 10A 125VAC Switch Push Button ON OFF SPDT Round Button 20A 250VAC 28VDC 372.85VA Quick Connect Panel Mount SWITCH, ROCKER, SPST, 10A, 250V, BLACK Switch,Pushbtn;Rnd;Mom;250VAC;6Apnlmt;20.2mmmnt;QC;Blk;Wtrprf |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CH945 | Product Category | Rocker Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | Compliant | Standards | IP65,UL1054 |
| Tariff No | 85365080 | ||
Electrical
| Circuit | SPST | Voltage Rating | 125V |
| Number of Poles | Singlepole | Switch Function | On-Off |
| Voltage - Rated AC | 250V VAC | Dielectric Strength | 1500VACfor1minute |
| Current Rating (Max) | 10A (AC/DC) | Current - Max/Contact | :10A |
| Switch Function/Rating | Maintained On-Off | Contact Rating (Current) | 20 A @ 14 V dc |
| Voltage - Supply (Vcc/Vdd) | :28V | Voltage - DC Spark Over (Nom) | 28V VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical

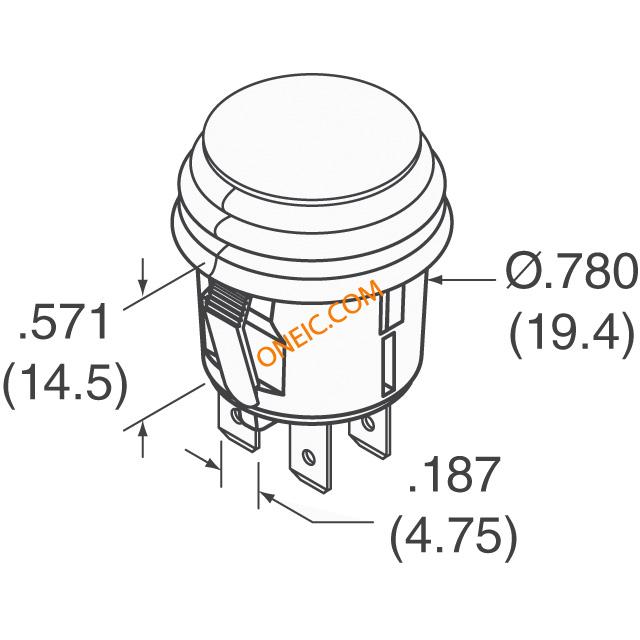

| Color | Black | Depth | 23 mm |
| Height | 24 mm | Weight | 0.005 |
| Packaging | Bulk | Case Color | Black |
| Termination | QCTabs | Contact Form | SPST |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Snap-In |
| Terminal Type | Tab | Actuator Color | Black |
| Contact Finish | Silver | Mounting Style | Panel |
| Contact Material | Silver Alloy | Housing Material | N/A/Nylon 66 |
| Length - Overall | 23 mm | Actuator Material | Polycarbonate |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Panel Cutout Shape | 20.2mm |
| Actuator Style/Size | Round Button | Number of Positions | On-Off |
| Color - Actuator/Cap | Black | Mounting Hole Diameter | 0.795In. |
| Switch Actuation Level | SPDT | Contact Layout, Typical | SPDT |

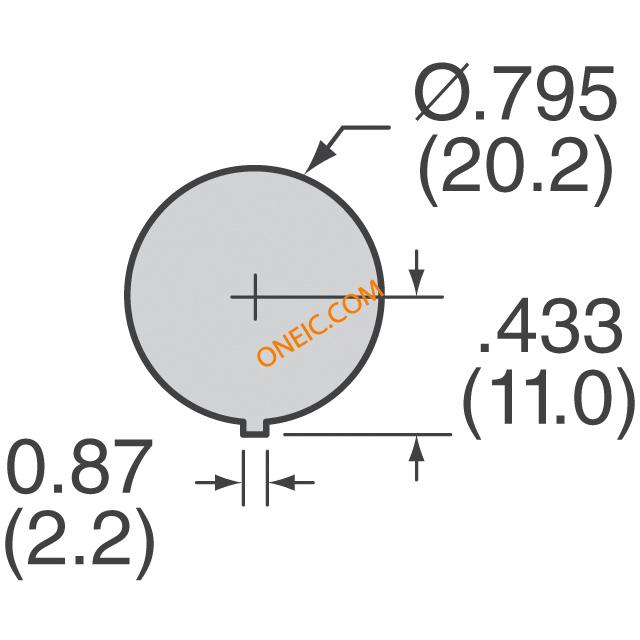

| Panel Cutout Dimensions | Circular - 20.20mm Dia | Illumination Type, Color | Not Required |
Product Info
| Type | Standard | DELETED | Compliant |
| Features | Silveralloycontacts,Siliconerubberwaterproofing | Electrical Life | 6,000 Cycles |
Environmental
| Seal Rating | IP65 | Mechanical Life | 100,000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Temperature Rating | -25degCto85degC |
| Operating Temperature | -25°C ~ 85°C | Operating Temperature - Junction | 85C |
