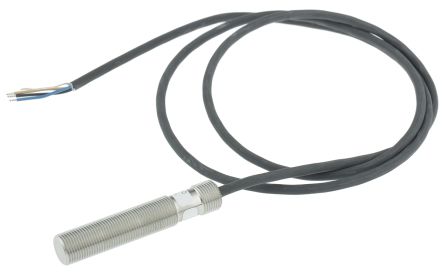

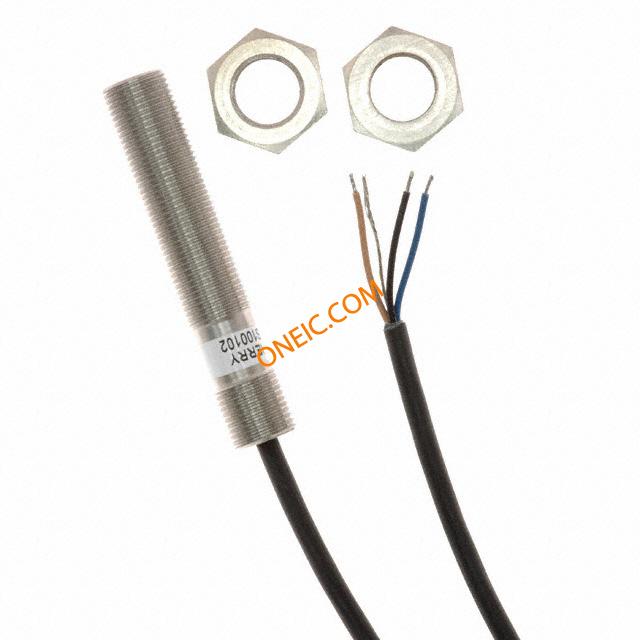

GS100102
| Manufacturer | |
| Description | Industrial Hall Effect / Magnetic Sensors SENSOR GEARTOOTH SPEED SENSOR ASSEMBLIES SENSOR GEARTOOTH SPEED SS M12 NPN Hall Effect Sensor, 20mA, 4.5 to 24V dc, IP68 Sensor; M12-1; Sink; 4.5 to 24 VDC; 6 mA (Max.); 700 mV (Max.) (Saturation) Speed Sensors SENSOR GEARTOOTH SPEED SENSOR ASSEMBLIES Product Highlights:Sense Motion of Ferrous Geartooth TargetsNear-Zero Speed Sensing CapabilityImmune from Hostile EnvironmentsNot Subject to Rotational OrientationHigh-Speed CapabilitySinking (Open Collector) OutputReverse Battery Protection to -24VdcWide Operating and Storage Temperature RangeM12 Integral Connector Meets IEC60947 - 5 - 2Meet all IEC (International Electrotechnical Commission) Requirements for Heavy Industrial Environments, Assuring Immunity from:Electrostatic DischargeElectrical TransientsRadiated Electric FieldConducted EnergyMagnetic Field Energy Sensor;M12-1;Sink;4.5to24VDC;6mA(Max.);700mV(Max.)(Saturation) Cherry NPN 霍尔效应传感器 switching current 20 mA supply voltage 4.5 → 24 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | CH414 |
| Subcategory | Sensor Misc | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Standards | IECApproved | Protection Features | Yes |
Electrical
| Output | Voltage/Current | Output Type | Digital |
| Voltage Rating | 24V | Current - Output | 25mA(Max.) |
| Voltage - Supply | 5 V ~ 24 V | Current - Switching | 20 mA |
| Voltage - Input (Min) | 700mV(Max.)(Saturation) | Voltage - Switching DC | 700mV |
| Reverse Polarity Protection | 是 | Voltage - DC Spark Over (Nom) | 24V |
Mechanical
| Length | 65.5mm | Lead Style | Cable |
| Termination | Cable | Mounting Type | Panel |
| Terminal Type | M12 Connector | Connector Type | M12 连接器 |
| Mounting Style | Panel Mount | Package / Case | Barrel, Stainless Steel |
| Length - Barrel | 2.56in. | Housing Material | Stainless Steel |
| Length - Overall | 65.5 | Primary Material | Speed |
| Actuator Material | Ferrous Metals, Gear Tooth | Termination Style | Wire Leads |
| Number of Positions | 4 | Supplier Device Package | Barrel |
Product Info
| Type | Hall Effect | Style | 柱体 |
| Function | Speed | Technology | HallEffect |
| Manufacturer | GS1001 | Sensing Method | AdjustableField |
| Printed Circuit Board | 4 | ||
Environmental
| Seal Rating | IP68 | Ingress Protection | IP67 |
| Operating Temperature | +125°C | ||
